Intelligent Cable Measurement Vision System

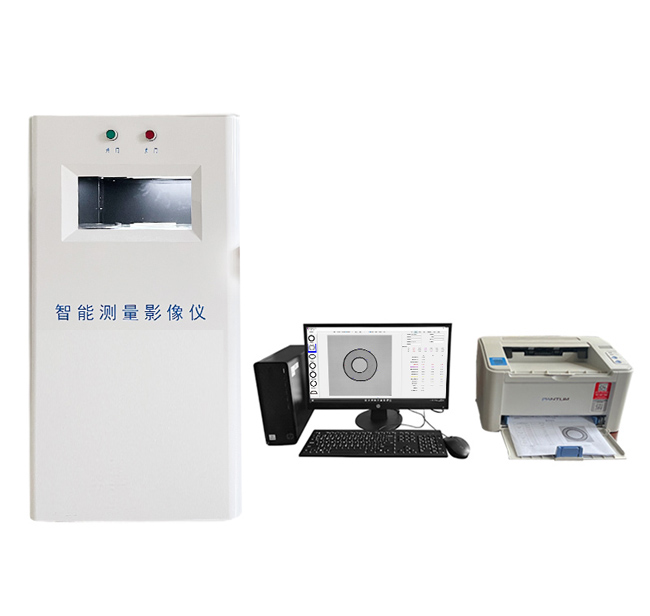

The Intelligent Cable Measurement Vision System is a non-contact, machine-vision-based testing instrument designed for rapid and precise measurement of wire, cable, and optical fiber structural parameters. The system can measure insulation and sheath thickness, outer diameter, eccentricity, concentricity, ovality, and conductor cross-sectional area, while automatically generating standardized test reports.

Application

This instrument is suitable for measurement and quality control of the following cable types and scenarios:

Single-core and multi-core round cables

Flat cables and dual-core flexible wires

Multi-layer co-extruded insulation and sheath cables

Insulation and sheathing materials such as elastomers, PVC, PE, PP

High-voltage and medium-voltage cable cross-section structural measurement

Quality control in cable manufacturing, R&D institutes, and third-party testing laboratories

Standards

The instrument is designed to comply with and execute the following standards:

GB/T 2951.11-2008: Measurement methods for insulation and sheath of wires and cables

IEC 60811-1-1 (2001): Test methods for insulation and sheath of electric cables

TB2809-2017: Standard for locomotive contact wires

GB/T 5023.2-2008: Measurement of insulation thickness in 3C-certified cables

Product Specifications

Features

High-precision measurement: Measures insulation and sheath thickness, eccentricity, concentricity, ovality, and conductor cross-section

Fast non-contact measurement: Machine vision enables measurement speeds far exceeding traditional projection or microscope-based methods

Intelligent software support: Automatically identifies multiple cable cross-section shapes, with optional manual measurement for non-standard profiles

Multi-light-source system: Parallel LED and auxiliary cross lighting ensure accurate measurement of non-transparent materials

Fully enclosed optical path: Vertical dust-proof design reduces optical refraction, improving measurement stability

3C certification support: Generates reports in compliance with GB/T 5023.2-2008

Standard upgradeable: Software can be updated to follow the latest IEC/GB standards

Accessories

Testing Principle

The system captures high-resolution cross-sectional images of samples using CCD/CMOS cameras. Machine vision algorithms analyze insulation and sheath geometry. Uniform illumination eliminates stray light interference, ensuring measurement accuracy and repeatability. Software extracts parameters such as thickness, outer diameter, eccentricity, concentricity, ovality, and conductor cross-sectional area, automatically generating standardized reports.

Operation Instructions

Ensure the light source and optical path are clean for uniform illumination.

Place the sample in the fixture, ensuring cross-section is perpendicular to the camera axis.

Select the appropriate camera group based on sample diameter and start the measurement program.

Software automatically captures images and calculates structural parameters; manual measurement is available for special cross-sections.

Upon completion, data is automatically stored in the database and can be printed as a report.

Operating environment: Temperature -10–40°C, Relative Humidity ≤95%, Altitude ≤2000 m.

Test Procedure

Power on the instrument and perform self-check; calibrate light source and camera parameters.

Place the sample at the center of the optical chamber, ensuring horizontal alignment.

Launch measurement software and select the corresponding template (round, flat, multi-core, etc.).

Software automatically captures images, extracts contours, and calculates thickness and geometric parameters.

Review measurement results and ensure compliance with relevant standards.

For non-standard cross-sections, mark measurement points manually; software calculates minimum/average thickness.

FAQ

1. What is this product?

The Intelligent Cable Measurement Vision System is a non-contact machine vision instrument for precise measurement of wires, cables, and optical fiber structures.

2. What is this product used for?

It measures insulation and sheath thickness, outer diameter, eccentricity, concentricity, ovality, and conductor cross-sectional area, generating standardized reports for quality control and R&D.

3. Why is this product important?

It ensures accurate, rapid, and repeatable cable parameter measurements, supporting product certification, production quality control, and compliance with international standards.

4. What industries is this product suitable for?

Cable and wire manufacturers

Optical fiber producers

Electrical component R&D laboratories

Third-party testing and certification agencies

5. What types of this product are available?

Single-camera group for small-diameter cables

Multi-camera groups for large-diameter or multi-core cables

Optional manual measurement module for non-standard cross-sections

Fully automated report generation for 3C and IEC/GB compliance
