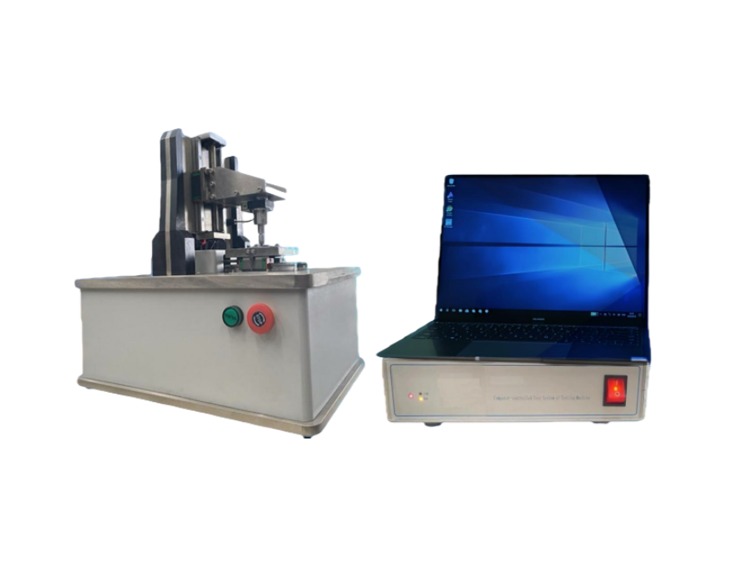

The Multi-Functional Friction and Wear Tester is a versatile instrument designed to evaluate the friction and wear performance of materials, surface coatings, and components. With support for a wide range of loads and rotational speeds, this tester can conduct both ball-on-disk and pin-on-disk tests. It complies with international testing standards such as GB, ISO, and ASTM.
This tester is computer-controlled for monitoring and automatically records essential parameters like friction coefficient, friction force, load, and torque, which are displayed in real-time in both data and graphical formats. An optional environmental control system allows for testing under adjustable temperature and atmosphere conditions.
The Multi-Functional Friction and Wear Tester is ideal for a broad range of applications:
Material surface processing: Research and evaluation of surface treatments or coatings.
Material failure & reliability: Identifying wear and failure points for improved material design.
Quality control: Used in industrial product quality inspection and ensuring durability and performance.
Wide material compatibility: Suitable for testing materials, coatings, and component surfaces under various frictional conditions.
This instrument is compatible with multiple international testing standards:
GB Standards (China)
(1) GB/T 3960 — Plastic Sliding Friction and Wear Test Methods
(2) GB/T 12444 — Metal Wear Test Methods
(3) GB/T 30732 — Tribological Testing Methods
ISO Standards
(4) ISO 7148 — Guidelines for Selecting Friction and Wear Test Conditions
(5) ISO 11093-2 — Method for Friction and Wear Testing of Materials
ASTM Standards
(6) ASTM G99 — Pin-on-Disk Friction and Wear Test Method
(7) ASTM G133 — Linear Reciprocating Friction and Wear Test Method
(8) ASTM G77 — Block-on-Ring Friction and Wear Test Method
Note: Test parameters are customizable according to the specific standard being followed.
| Item | Specification |
|---|---|
| Test Load Range | 10–2000 g (accuracy ±1% F.S) |
| Test Speed | 5–2000 rpm (stepless adjustment) |
| Reciprocating Frequency | 0–20 Hz (optional module) |
| Reciprocating Stroke | 1–25 mm |
| X-axis Travel | 3–25 mm, adjustable |
| Z-axis Height | 0–100 mm, adjustable |
| Friction Diameter | Φ3–Φ50 mm |
| Lower Specimen Size | 10–60 mm, thickness 2–20 mm |
| Upper Specimen Size | Φ3–Φ6 mm, pin length 10–15 mm (customizable) |
| Friction Force Measurement Range | ≤20 N |
| Friction Coefficient Accuracy | 0.2% F.S |
| Heating Module Temperature | Room temperature–220°C |
| Friction Environment (Optional) | Stainless steel or PTFE chamber for liquid friction testing |
| Dimensions | 900×500×700 mm |
| Weight | 60 kg |
Multiple Friction Pair Configurations: Supports ball-on-disk and pin-on-disk tests for various material combinations.
Real-Time Measurement: Displays friction coefficient, friction force, load, torque, and other parameters in real-time.
Adjustable Environmental Control: Allows testing under controlled temperature and atmosphere (optional module).
Wide Load and Speed Range: Offers flexibility for testing a variety of materials and surfaces.
Automatic Safety Shutdown: Ensures reliability with automatic protection in case of parameter overrun.
Modular Design: Includes optional reciprocating and rotary modules for extended testing flexibility.
High Precision: Friction coefficient accuracy up to 0.2% F.S for precise measurement.
Compact and User-Friendly: Easy to operate and setup, with a comprehensive accessory kit provided for convenience.
Main Components:
Multi-functional friction and wear control system
LCD display and main unit
Tool kit, backup files, and user manual
Optional Modules:
Reciprocating Module
Sample Size: 8–35 × 8–60 × 1.5–12 mm
Stroke: 3–25 mm
Frequency: 0.5–20 Hz
Dry Friction Max Load: ≤100 N
Note: Stroke-frequency limits
2 Hz → ≤10 mm
10 Hz → ≤5 mm
30 Hz → ≤3 mm
Rotary Module
Sample Size: Φ10–Φ53 mm, thickness 2–10 mm
Rotation Radius: 3–20 mm
Test Speed: 10–1000 rpm, ±1 rpm
Note on Load-Speed Limits:
3000 rpm → ≤2 N
2000 rpm → ≤5 N
1000 rpm → ≤10 N
500 rpm → ≤20 N
200 rpm → ≤100 N
Prepare the Sample: Mount the sample according to the chosen friction mode (ball-on-disk, pin-on-disk, etc.).
Set Parameters: Configure test parameters such as load, speed, stroke, frequency, temperature, and lubrication condition.
Start the Test: Initiate the test and monitor real-time results on the display. The system will record friction forces, torque, and temperature throughout the test.
Post-Test Analysis: Once the test is complete, use the software's post-processing features to analyze the data, export it in multiple formats (e.g., txt, xlsx), and generate reports.
Cleaning: Regularly clean friction surfaces to prevent buildup of wear particles or contamination.
Calibration: Calibrate the load and displacement sensors periodically to maintain accurate measurements.
Lubrication: Ensure lubrication channels are clean and replenish lubricants as needed for oil-lubricated tests.
Software Updates: Keep the software and firmware up to date for optimal functionality and feature enhancements.
System Checks: Periodically check the temperature control system and verify the stability of components to ensure reliable performance.
