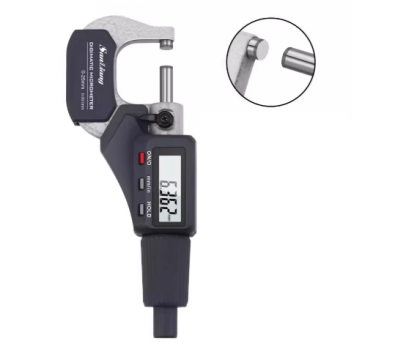

Thickness gauge / micrometer

The Thickness Gauge / Micrometer (211-141) is designed for precise measurement of material thickness up to 25 mm. It features high-precision stainless steel construction with a carbide measuring tip, ensuring long-term accuracy and durability. The instrument is compact, easy to carry, and suitable for laboratory, industrial, and quality control applications.

Applications

(1) Measurement of sheet metal, plastic, rubber, laminates, and composite materials

(2) Quality control in manufacturing and production lines

(3) Laboratory testing for material research and development

(4) Industrial inspection of coatings, laminates, and films

Standards

(1) EN 438-2.5 — High-pressure decorative laminates (HPL) — Determination of thickness

(2) ISO 3611 — Metallic materials — Determination of thickness by micrometer method

(3) DIN 863 — Micrometers and thickness gauges for engineering use

(4) ASTM E83 — Standard practice for verifying the performance of micrometers

Key Features

(1) High-precision measurement with ±0.001 mm accuracy

(2) Measuring range: 0–25 mm

(3) Stainless steel frame for durability

(4) Carbide measuring face for wear resistance

(5) Compact and portable, easy to use

(6) Supplied in a protective plastic case for safe storage and transport

Technical Parameters
