Heat plate / oven，Testing dry and wet heat resistance, Up to 200 °C, Dry/Wet heat resistance (EN 438
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

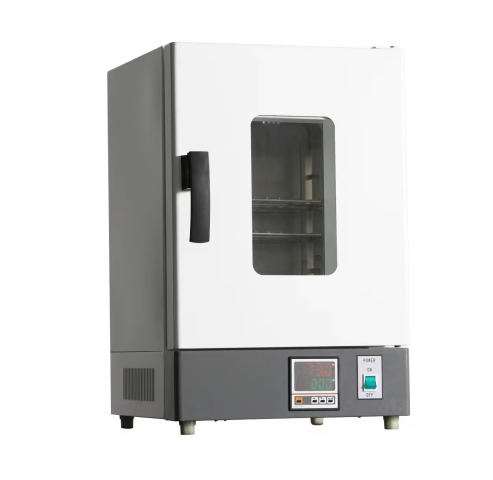

The Series Heat Plate / Oven is designed for testing dry and wet heat resistance and can be used for drying, baking, wax melting, and sterilization. It features a PID microcomputer temperature controller with LCD display, over-temperature protection, and precise temperature control. The oven chamber is made of mirror-finished stainless steel, with a high-quality steel outer shell. It includes a tempered glass observation window, drawer-type shelves, and a self-locking rotary door handle to ensure good sealing and uniform heat distribution.
(1) Drying and baking of samples in laboratories
(2) Heat resistance testing of materials and coatings
(3) Sterilization and wax melting processes
(4) Industrial, research, and quality control applications
(5) Material testing for heat stability and thermal endurance
(1) EN 438-2.16 — High-pressure decorative laminates (HPL) — Determination of resistance to dry heat
(2) EN 438-2.18 — High-pressure decorative laminates (HPL) — Determination of resistance to wet heat
(3) ISO 9187-1 — Laboratory ovens — General requirements
(4) IEC 61010-1 — Safety requirements for electrical equipment for measurement, control, and laboratory use
(5) GB 4793.1-2007 — Safety requirements for electrical laboratory equipment
| Model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A |
|---|---|---|---|---|
| Heating Method | Bottom heating with stainless steel electric heater | |||
| Power Supply | 220V 50Hz | |||
| Air Circulation | Bottom fan, forced convection | |||
| Temperature Range | RT+10–200°C (or RT+10–250°C on request) | |||
| Temperature Controller | PID microcomputer, LCD display, timer, over-temperature alarm | |||
| Temperature Resolution / Fluctuation | 0.1°C / ±1.0°C | |||
| Temperature Uniformity | ±2.5% at 100°C | |||
| Operating Environment | 5–40°C | |||
| Input Power (W) | 800 | 1400 | 1900 | 2100 |
| Volume (L) | 31.5 | 72 | 136 | 225 |
| Inner Dimensions (W×D×H cm) | 30×30×35 | 40×40×45 | 45×55×55 | 50×60×75 |
| Outer Dimensions (W×D×H cm) | 45×47×70 | 54.5×62×80 | 58.5×76×90 | 63.5×81×110 |
| Shelves (Standard / Max) | 2 / 3 | 2 / 4 | 2 / 5 | 2 / 5 |
| Timer Range | 1–9999 min | 1–9999 min | 1–9999 min | 1–9999 min |
(1) LCD display with PID temperature control
(2) Multiple data displayed on one screen
(3) Over-temperature protection and precise control
(4) Mirror-finished stainless steel inner chamber
(5) High-quality steel outer shell with white coating
(6) Tempered glass observation window (3C rated)
(7) Drawer-type shelves for easy sample placement
(8) Self-locking rotary door handle for good sealing
(9) Efficient air circulation for uniform temperature
(10) Silicone sealing strips for long-term high-temperature operation
(11) High-quality insulating material for heat retention
(1) Independent temperature limit alarm system
(2) Temperature recorder or RS485 interface
(3) Touch-screen intelligent program control panel
