Testing water immersion resistance, 100 °C ± 2 °C, Boiling water resistance (EN 438-2.12)
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

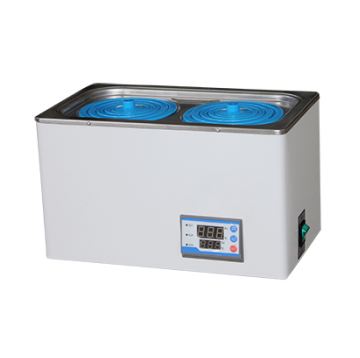

DK-S Series Boiling Water Baths are commonly used laboratory instruments for sample pretreatment, widely applied in medical, chemical, biological, research, industrial, and educational laboratories. The structure consists of an outer shell, water tank, heating element, and temperature control components. These water baths provide precise temperature control with PID controllers, overheat protection, and other safety features.
(1) Laboratory sample heating and pretreatment
(2) Medical and pharmaceutical research
(3) Chemical and biological experiment temperature control
(4) Industrial quality control and sample incubation
(5) Educational and scientific research laboratories requiring precise temperature maintenance
(1) ISO 13485 — Medical devices — Quality management system
(2) IEC 61010-1 — Safety requirements for electrical equipment for measurement, control, and laboratory use
(3) GB 4793.1-2007 — Safety requirements for electrical equipment in laboratories
(4) ASTM D1120 — Laboratory hot bath and temperature control specifications
(5) EN 438-2.12 — High-pressure decorative laminates (HPL) — Determination of resistance to boiling water
| Model | Configuration | Volume (L) | Temp. Range (°C) | Temp. Accuracy (°C) | Display Resolution | Rated Power (W) | Inner Dimensions (mm) | Outer Dimensions (mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| DK-S11 | Single row, single hole | 2.3 | RT+5–99.9 | ±0.1 | 0.1 | 300 | 160×160×120 | 210×200×210 | 2.3 | 4.6 |
| DK-S12 | Single row, double hole | 6 | RT+5–99.9 | ±0.1 | 0.1 | 600 | 300×160×120 | 340×200×210 | 3.2 | 5.6 |
| DK-S14 | Single row, four holes | 9 | RT+5–99.9 | ±0.1 | 0.1 | 1000 | 620×170×120 | 630×200×210 | 5.0 | 10 |
| DK-S16 | Single row, six holes | 14 | RT+5–99.9 | ±0.1 | 0.1 | 1500 | 920×170×120 | 960×200×210 | 8.0 | 14.5 |
| DK-S18 | Single row, eight holes | 18 | RT+5–99.9 | ±0.1 | 0.1 | 1800 | 1220×170×120 | 1230×200×210 | 10.0 | 19 |
| DK-S24 | Double row, four holes | 9 | RT+5–99.9 | ±0.1 | 0.1 | 800 | 320×320×120 | 350×350×210 | 5.0 | 8.4 |
| DK-S26 | Double row, six holes | 12 | RT+5–99.9 | ±0.1 | 0.1 | 1200 | 450×320×120 | 510×350×210 | 7.4 | 12 |
| DK-S28 | Double row, eight holes | 17 | RT+5–99.9 | ±0.1 | 0.1 | 1500 | 610×310×120 | 630×350×210 | 9.0 | 14 |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
