FeaturesTouch screen PC for data logging and control of speed and temperaturePrecision regulato
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

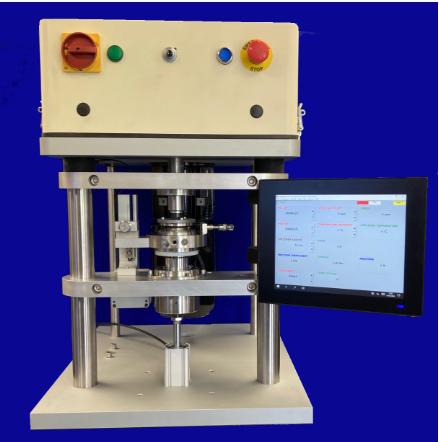

Touch screen PC for data logging and control of speed and temperature
Precision regulator for manual control of load
Air bearing mounted load and friction assembly
Optional capacitance probe for on-line wear measurement
ASTM D3702 Standard Test Method for Wear Rate of Materials in Self-Lubricated Rubbing Contact Using a Thrust Washer Testing Machine
ASTM G99 Wear Testing with a Pin-on-Disc Apparatus
| Thrust Washer: | According to ASTM D3702 |
| Pin on Disc: | According to ASTM G99 |
| Pin Track Radius: | 10 to 35 mm |
| Pin Size: | 8 mm diameter x 15 mm long |
| Disc Diameter: | 75 mm maximum |
| Load Range: | 20 to 750 N (@ 6 bar air pressure) |
| Loading Method: | Pneumatic |
| Load Measurement: | Pressure transducer |
| Load Control: | Precision pressure regulator |
| Friction Measurement: | Databeam strain gauge transducer |
| Torque Reaction Mounting: | Air bearing |
| Temperature Range: | Ambient to 200°C |
| Heater Power: | 550 W |
| Temperature Sensor: | k-type thermocouple |
| Rotational Speed: | 30 to 1.800 rpm |
| Motor: | 1.5 kW a.c. vector motor |
| Control & Data Acquisition: | Touch-screen PC & Interface |
| Data Export: | USB Stick |
| Automatically Controlled Parameters | Rotational Speed |
| Temperature | |
| Test Duration | |
| Manually Controlled Parameters | Load |
| Measured Parameters | Rotational Speed |
| Wear (Optional) | |
| Friction Force | |
| Temperature | |
| Number of Revolutions | |
| Test Duration | |
| Sliding Speed | |
| Friction Coefficient | |
| Sliding Distance | |
| Services | |
| Electricity: | 220/240V, single phase, 50 Hz, 3.0 kW |
| 110/120 V, single phase, 60 Hz, 3.0 kW | |
| Clean, dry air: | 4 cfm at 8 bar (120 psi) |
