Carpet Abrasion Resistance Tester

Standard

• ASTM D4157 (Standard Test Method for Abrasion Resistance of Textile Fabrics (Oscillatory Cylinder Method))
• ISO 12947-2 (Textiles - Determination of Abrasion Resistance - Part 2: Martindale Method)
• EN 14465 (Resistance to Abrasion for Carpets)


Product Advantages

1. Unmatched Precision
   • High-resolution load sensor (±0.1N accuracy) and programmable test cycles deliver repeatable results for wool, synthetic, and blended carpets.
2. Adaptive Testing Modes
   • Supports rotary (ASTM D4157) and planar (ISO 12947) abrasion methods to replicate light residential use to heavy commercial traffic.
3. User-Centric Design
   • 7-inch touchscreen control panel with multilingual support (English, German, Spanish, Chinese) and real-time data visualization.
4. Industrial-Grade Durability
   • Stainless steel test chamber, corrosion-resistant components, and anti-vibration feet ensure long-term reliability in busy labs.
5. Cost-Efficient Maintenance
   • Modular design allows easy replacement of abrasive heads and clamps, minimizing downtime and operational costs.

Product Features

• Customizable Testing Parameters:
  • Adjustable test speed (10–120 rpm) and load pressure (1–50 N) to simulate everything from bare feet to heavy furniture movement.
  • Automatic cycle counter with pause/resume function for uninterrupted workflows.
• Safety & Compliance:
  • Emergency stop button, over-temperature protection, and CE/UL certification for safe operation.
• Data Management:
  • Onboard memory stores 10,000+ test results, exportable via USB/Bluetooth in CSV/PDF formats. Compatible with LIMS (Laboratory Information Management Systems).
• Universal Sample Compatibility:
  • Adjustable clamps accommodate carpets up to 500mm in diameter (rotary mode) or 300×300mm (planar mode).

Technical Parameters

Accessories Included

1. Abrasive Heads (2 pcs): Standard H-18 (planar) and CS-17 (rotary) for versatile testing.
2. Sample Clamps (3 sets): For loop-pile, shag, and flat-weave carpets.
3. Dust Cover: Transparent acrylic shield for operator safety.
4. Calibration Kit: Weight set and gauge for annual equipment verification.
5. User Manual & Software: Digital guide (multilingual) + PC software for advanced data analytics and ISO-compliant report generation.

Ideal For:

• Carpet manufacturers (residential, commercial, hospitality)
• Textile testing laboratories
• Flooring retailers requiring durability certifications
• Architectural firms specifying high-traffic carpets

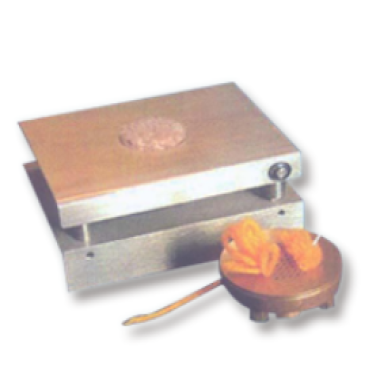

Product Display
