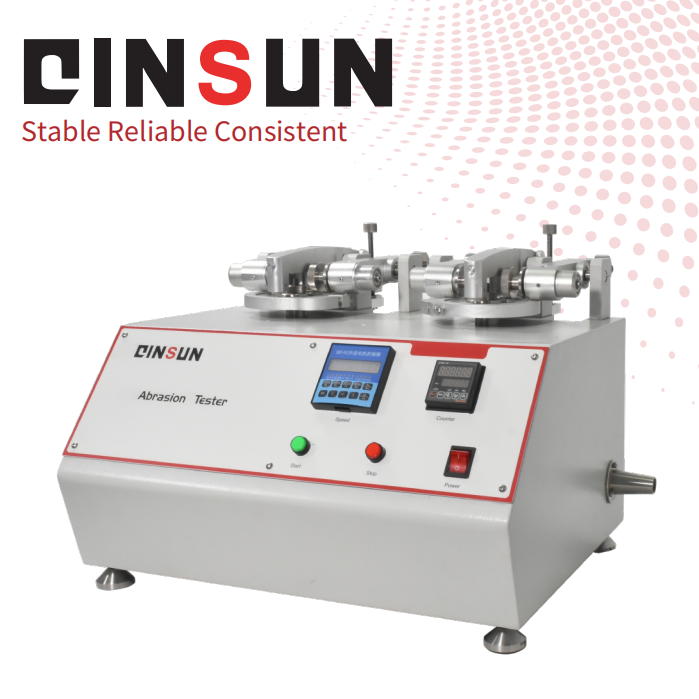

Taber Abrasion Tester (Double-Head)

Taber Abrasion Tester (Double-Head) is used for abrasion and wear resistance testing. It measures the abrasion resistance and other wear properties of a sample by applying friction to it with a specified abrasive material at a certain load and speed. These properties include mass loss, thickness loss, and changes in light transmittance. The abrasive wheel is pre-ground using standard methods, ensuring high consistency in test results. The instrument's excellent repeatability of experimental data helps manufacturers effectively control production and inspect products.

Application

Suitable for testing the surface abrasion resistance of flat materials: suitcases, carpets, cardboard, clothing, glass, plastic coatings, tiles, metal plating, paint, varnish, decorative sheets, high-pressure sheets, plastic textiles, resilient floor mats, traffic paint, anodized layers, blankets, electronic components, decorative panels, waxes, labels, leather cases, dental materials, automotive interior trim, resins, furniture, etc. Widely used in product quality control, new product development performance verification, and testing by testing institutions. Suitable for performance verification of new product development, quality control in production departments, third-party testing institutions, product performance verification laboratories, and quality and technical supervision departments for determining material properties.

Standards

DIN Standards: DIN 53754 (plastics), DIN 53109 (paper/board), DIN 52347 (glass/plastics)

ASTM Standards: ASTM D1044 (transparent plastics), ASTM D3884 (textiles), ASTM D4060 (coatings)

ISO Standard: ISO 5470 (rubber/plastics-coated fabrics)

TAPPI Standard: TAPPI T476 (paper/paperboard abrasion)

Feature

Dual Testing Stations: Independent control of two abrasion heads for parallel testing or comparative analysis.

Digital Control Panel: Real-time speed display, adjustable RPM, and programmable cycle counters with automatic stop.

Adjustable Vacuum System: Height-customizable suction port adapts to material thickness, ensuring debris-free testing.

Modular Abrasion Wheels: Interchangeable wheels (e.g., CS-10. H-18) and sandpaper discs for material-specific wear simulation.

Precision Balancing: Rear-arm counterweights (250g, 500g, 750g, 1000g) enable ASTM-standard 125g pressure and beyond.

Sample Preparation Kit: Includes sample stickers, diamond polishers, and vacuum attachments for seamless workflow.

Parameters

Accessoriess

Standard accessories: 270A01 125g weight, 270A02 250g weight, 270A03 500g weight,270A04 H-18 grinding wheel

Optional accessories:270A05 750g weight, 270A06 CS-10 friction wheel, 270A07 Polishing disc S-1. 270A08 Test card S-36. 270A09 Vacuum cleaner (Panasonic), 270A10 2.5N weight, 270A11 S-11 sandpaper

Test Procedures

1. Prepare the test sample

Mount the prepared sample onto the test platform and secure it.

2. Load the sample

Mount the friction wheel onto the fixture and apply the balance weights to both sides.

3. Adjust the vacuum pump suction height:

Remove any debris from the sample.

4. Start the test

Turn on the instrument and set the bearing rotation count on the timer.

5. Stop the test

Once the set value is reached, the instrument will automatically stop. Remove the friction wheel and weights.

6. Sampling

After the test, turn off the instrument, remove the sample, and perform analysis and comparison.

7. Analysis

To evaluate the material's abrasion resistance.
