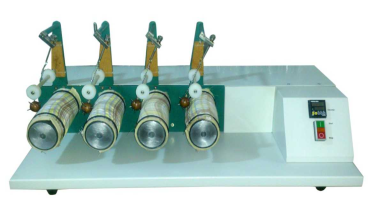

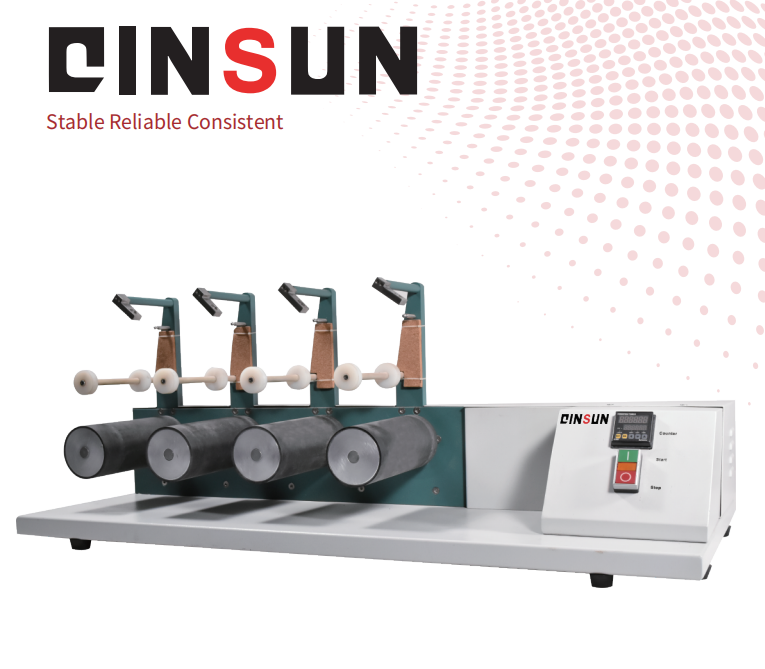

ICI Mace Snag Tester

Standards

ASTM D3939 Standard Test Method for Snagging Resistance of Fabrics (Mace Test Method)

GB/T 11047 Textiles-Determination of fabrics snagging resistance-Mace test method

JIS L1058 Test methods for snag of woven fabrics and knitted fabrics

Working Principle

The cylindrical specimen is placed on the revolving drum, and  a chained  hammer is  placed on the surface of the specimen. When the drum rotates at a constant speed, the nail hammer makes random flip and bounces on the sample surface to hook the sample. The sample surface produces snagging. After the specified number of revolutions, compare with the comparison snag Lattuca for snag rating..

Accessories

· Snag rating box

· Tungsten carbide crochet hook (12pcs/bag)

· Felt jacket (4pcs/bag)

· Comparison snag Lattuca

Technical Parameters

· Specimen size: 220mm×330mm;

· Revolving drum diameter: 82mm;

· Revolving drum length: 210mm;

· Mace ball: Tungsten carbide  head;

· Mace diameter : 31.8 mm;

· Mace height:135g;

· Mace protruding length: 9.5 mm;

· Mace plant needles: 11 tungsten needles;

· Needle exposed length: 10mm;

· Tip radius: R0.13mm;

· Guide bar working width: 125mm;

· Distance between the hammer and the guide bar：45mm;

· Stations: 4;

· Test speed: 60rpm;

· External dimension: 1007×508×405mm(L×W×H);

· Weight: about 90kg;

· Power supply: 1∮ ，AC220V，50Hz，3A
