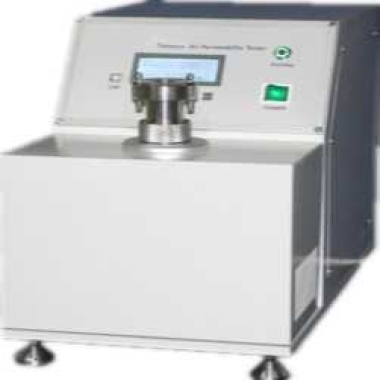

Tobacco Air Permeability Tester

Airflow method to measure the permeability of tobacco, cut tobacco, thickness, length, and added, fu

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Airflow method to measure the permeability of tobacco, cut tobacco, thickness, length, and added, fully able to affect the size of the draw resistance. When you exert a certain pressure of airthe fixed mass and volume of tobacco, by measuring the gas flow, it can test the ventilationof the tobacco.

Use high precision large range of imports of electronic flow sensors and pressure sensors, TO test the permeability of the tobacco
One key test. The sample is installed. Simply press a key, and you can quickly test the permeability of the tobacco. The instrument with a USB interface , can use the software to count and analyze test results, and print the standard test report. It can also save the test report to EXCEL format.

Technical Parameters

Items	Parameters
Measuring range	10ml/s~60ml/s
Test time	15 seconds on average
Power requirements	AC 100-240V，50/60Hz
Dimensions	L520 x W280 x H300mm
Measuring accuracy		<2%
PC communication		USB port connection
Pressure		10Pa~2500Pa
Weight		10kg
Warranty		24 Months

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
