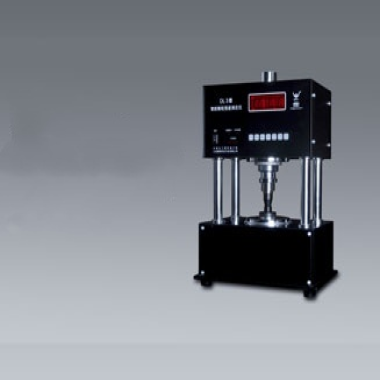

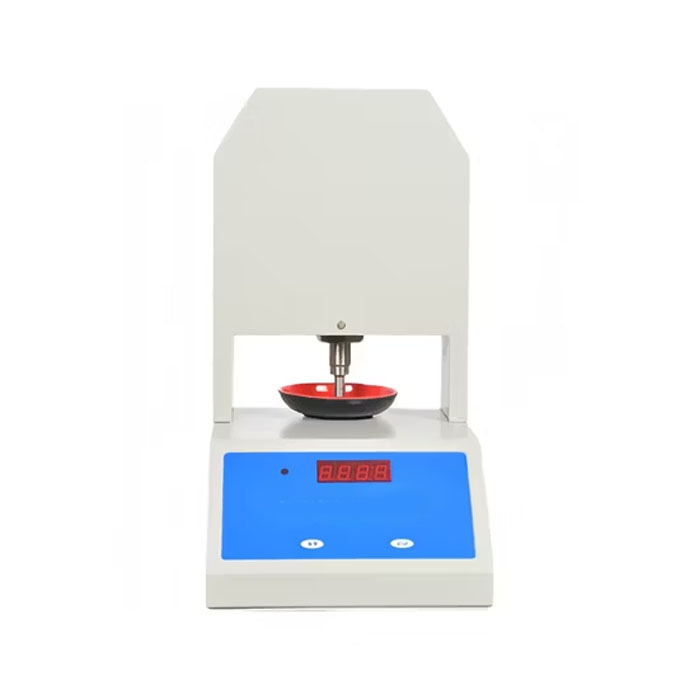

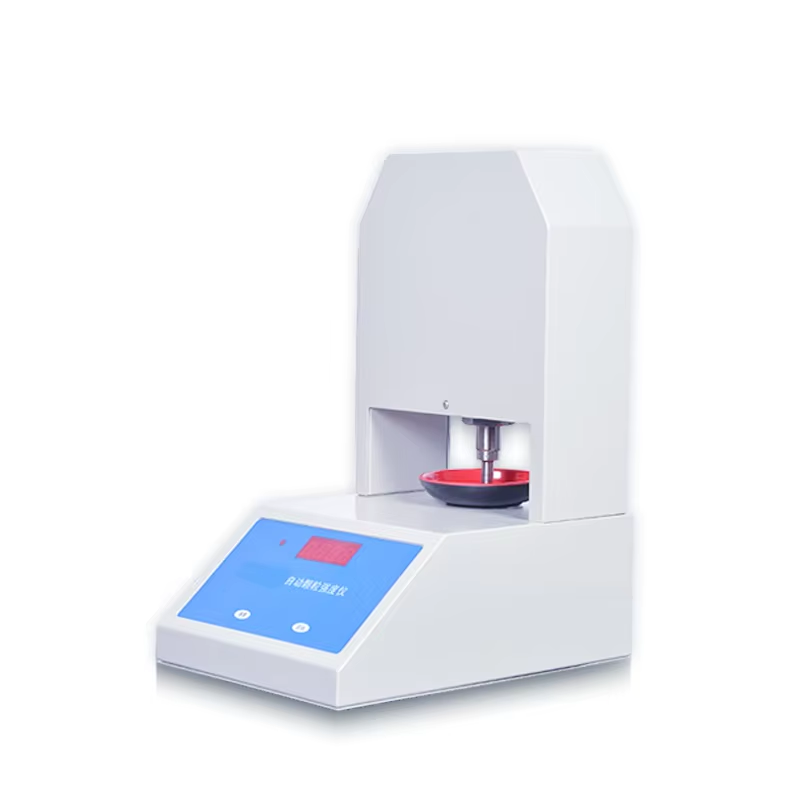

Particle Strength Tester

Standard

• ASTM D4179: Standard Test Method for Single-Pellet Pressure Resistance of Catalysts and Catalyst Carriers

• ASTM D6175: Standard Test Method for Radial Crush Strength of Extruded Catalyst and Catalyst Carrier Particles

• ISO 9773: Methods for Testing Catalysts – Radial Crush Strength

Product Advantages

1. Unrivaled Precision

• Sub-micron Force Resolution: Detects forces as low as 0.001 N for fragile materials like pharmaceutical granules.

• High-Speed Data Acquisition: 10,000 Hz sampling rate captures transient deformation events.

2. Universal Applicability

• Tests particles from 0.1 mm to 50 mm in diameter (spherical, cylindrical, irregular shapes).

• Multi-Mode Testing: Compression, tension, shear, and indentation modes in one platform.

3. Intelligent Automation

• AI-powered load application adjusts speed and force in real-time to prevent sample damage.

• Auto-Centering Fixture: Ensures perfect alignment for irregularly shaped particles.

4. User-Friendly Workflow

• 10.1” HD touchscreen with gesture control and multilingual interface (12 languages).

• One-Click Testing: Preprogrammed protocols for ASTM/ISO standards simplify operator training.

5. Data Integrity

• Blockchain-secured data storage prevents tampering (compatible with 21 CFR Part 11).

• Cloud-connected analytics for remote monitoring and collaboration.

Product Features

• Non-Destructive Testing (NDT) Option: Ultrasonic imaging module visualizes internal cracks without breaking samples.

• Environmental Chamber Compatibility: Temperature (-40°C to 200°C) and humidity (10%–95% RH) control.

• Dynamic Force Profiling: Programmable force ramps with sinusoidal, triangular, or custom waveforms.

• 3D Force Mapping: Scans particle surfaces to identify weak points before full testing.

• Emergency Stop System: Laser-based safety curtain halts operation upon intrusion detection.

Technical Parameters

Accessories Included

1. Testing Fixture Kit:

• Compression platens (2mm/5mm/10mm diameters).

• Tensile grips with serrated jaws (0.5–50mm capacity).

• Shear blade set (V-notch and flat options).

2. Software Suite:

• License key for ParticleAnalyst Pro (Windows/macOS).

• 6-month free access to AI-driven failure prediction module.

3. Calibration & Safety:

• NIST-traceable calibration weights (1g–500g set).

• Emergency stop pendant with magnetic dock.

4. Portability & Storage:

• Shockproof carrying case with custom foam inserts.

• Dust cover and anti-vibration pads.

5. Documentation:

• Quick-start guide (printed and digital).

• Compliance certificates for ASTM/ISO standards.
