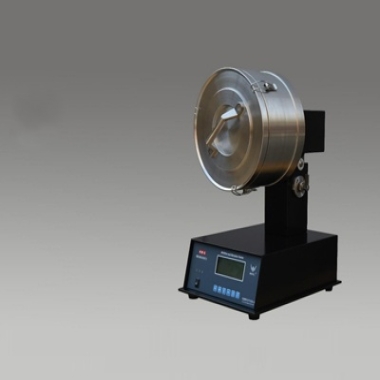

STD-6 Particle Abrasion Tester

The STD-6 particle wear tester is designed and developed by our company according to the standard te

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

The STD-6 particle wear tester is designed and developed by our company according to the standard technical indicators of the American ASTM D4058-96 (Reapproved 2015) "Standard Test Method for Wear of Catalysts and Catalyst Carriers". It is a special test instrument for the wear rate of granular catalysts, catalyst carriers, etc. It is widely used in the fields of petroleum, chemical industry, scientific research, etc.

Main functions:

This instrument uses LCD display, Chinese and English menus, simple operation, and the set parameters have power-off memory function, and no repeated settings are required. It uses high-power stepper motor transmission and high-precision single-chip microcomputer control to make the work more stable and the speed accurate. This instrument provides two working modes: wear and screening to meet the different requirements of catalyst scientific research and production units.

Technical indicators:

Grinding drum speed: 25, 30, 40, 50, 60, 80, 100 (rpm)

Grinding drum speed: 1-9999 rpm

Screening frequency: 1-9 Hz

Screening time: 1-9999 seconds

Size screen aperture: 20 mesh (or as required)

Grinding drum diameter: 10 inches (254mm)

Grinding drum net depth: 6 inches (152mm)

Grinding drum roughness: <250μ inches (6.4μmm)

Ribbon height: 2 inches (51mm)

Grinding drum material: stainless steel
