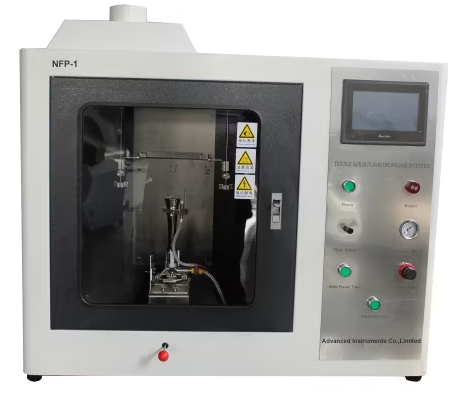

Drapery Flammability Tester

The Drapery Flammability Tester evaluates textile and drapery flame resistance per NFPA 701. ASTM D6413. and ISO 6941. It uses a propane burner (12mm nozzle) to test vertical (610×1220mm) or horizontal (610×2440mm) samples, measuring flame spread time (s), char length (mm), and afterflame/afterglow duration to assess ignition resistance and self-extinguishing properties.

Applications

Textile Manufacturing: Certifying fabrics for public buildings

Interior Design: Evaluating drapery fire resistance

Fire Safety Departments: Compliance testing for hotels/hospitals

R&D: Developing flame-retardant coatings

Standards

NFPA 701: Standard Methods of Fire Tests for Flame Propagation of Textiles and Films

ASTM D6413: Standard Test Method for Flame Resistance of Textiles (Vertical Test)

ISO 6941: Textile Fabrics - Burning Behaviour - Measurement of Flame Spread Properties of Vertically Oriented Specimens

BS 5852: Fire Tests on Materials and Products, General Guidance for the Testing of Non-Metallic Materials

Features

Dual Test Modes:

Vertical Test: Evaluates upward flame spread

Horizontal Test: Measures lateral ignition resistance

Advanced Detection:

Real-time thermal imaging (°C gradient mapping)

AI-based flame front tracking

Automatic char length measurement (±1mm accuracy)

Automation:

Motorized burner positioning

Programmable gas flow control

Self-cleaning exhaust system

Parameters

Test Procedures

Sample Preparation: Cut to size, clamp vertically/horizontally

Calibration: Reference fabric validation

Testing: Ignite burner at specified height/duration

Analysis: Generate flame spread velocity curves

Cleaning: Automated soot extraction system

Safety Precautions

Fire-rated enclosure required (class A60)

PPE mandatory (heat-resistant gloves, goggles)

Fire extinguisher (Class B) must be on standby
