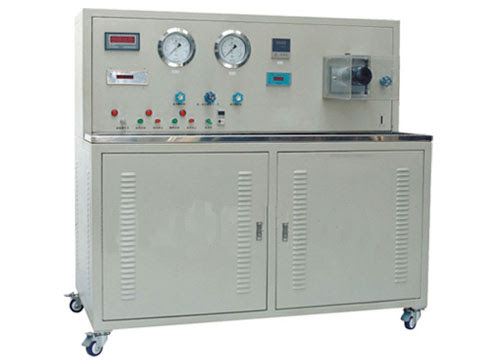

Oil Filter Test Rig ISO 4548

The test stand is mainly used for testing the performance of hydraulic filters and filter elements according to the ISO 4548-1. The scope of the testing is to measure the differential pressure across the filter housing or filter element as a function of the volumetric flow rate and the viscosity.

The test stand is automatically controlled by a computer which saves the measured data in chronological order; the flow chart and all the test parameters can be displayed on the screen. Data handling and generation of reports according to the standard ISO 4548-1 are included.

Standards

The test stand is designed as an Oil Filter Test Stand acc. to ISO 4548-1 as a part of the filter manufacturing and quality monitoring cente

Following tests can be performed with this test stand:

1、Executive standard: jb/t 5088.2-2008 internal combustion engine spin-on oil filter;

2、Test object: internal combustion engine oil filter, oil filter element bypass valve

3、Differential pressure characteristics acc. to ISO 4548-1

Flow rate ramp

Differential pressure characteristics of bypass valve

Opening pressure of bypass valve

Leakage volume of bypass valve

Components

It consists of test system, bypass valve detection system, particle original filtration efficiency, life system, automatic program control system and bench.

Purification filter, the use of my company's own design and production of the flow resistance test bench special purification filter, can make the system cleanliness quickly reach the standard, dirt capacity, life β10 (c) ≥ 200. to ensure that the test results to maintain a certain degree of stability, repeatability, accuracy, and can make the test bench in a long time in a clean state. Mainly composed of oil storage tank and auxiliary pump. Convenient for personnel operation, to ensure the convenience of post-processing of the test bench before and after the test.

Piping: the main test system piping using stainless steel, pipe joints and piping layout to avoid the flow of dead zone, thus avoiding impurities in the long-term use of sludge, to ensure the test bench repeat

Temperature control system: with heating and radiator devices, and should meet the safety requirements.

Bypass Valve Test System: Borrow the test system of flow resistance. A separate bypass valve test line is added to the working panel. Mainly consists of bypass valve test line, filter assembly without cartridge (according to the customer's specific force transducer, pressure digital display meter.

Particle original filtration efficiency, life system: mainly composed of peristaltic pump, bypass valve, differential pressure sensor, filter container, impurity agitator.

Bench :Made of aluminum alloy profile, stainless steel plate. Dimensions (reference 3000×1200×1900) and shape need to be countersigned by both parties.

technical indicators

1 Main test system:

1.1 Test system flow range: 5 L/min ~ 100L/min;.

1.2 Working medium: CC30 diesel oil (at 74 ℃ when the kinematic viscosity of 24 mm2 / s) No. 0 diesel fuel;

1.3 Pressure gauge range: 0 ~ 2MPa Measuring accuracy of ± 5%;

1.4 Medium temperature: room temperature ~ 100 ℃; 4.1.5 Differential pressure measurement: 0 ~ 2MPa.

1.5 Differential pressure measurement range: 0～600kPa; 4.1.6 Test tank: 0～600kPa; 4.1.6 Test tank: 0～2MPa

1.6 Test tank volume: 80L (specific data negotiated between the two sides).

2 Original filtration efficiency test system:

2.1 Test system flow range: 1L/min～10L/min; 4.2.1 Test system flow range: 1L/min～10L/min.

2.2 Working medium: 0# diesel fuel.

2.3 Medium temperature: ambient temperature.

2.4 Volume of test fluid cylinder: 10L.
