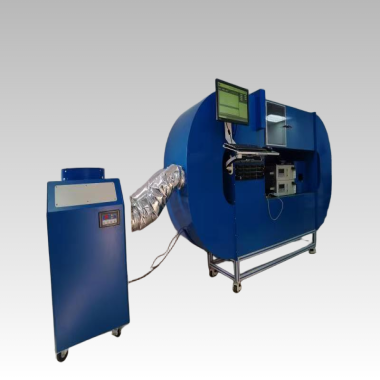

Standards Smoke and Heat alarm test tunnel

Aerosol generator

Built in Thomas brushless pump imported from Germany

Agent：Liquid paraffin, 500ml provided

Particle size distribution between 0.5µm~1.0µm

Smoke rising rate: 0.015 dB/m/min≤⊿m /⊿t ≤0.1dB/m/min, preset to 0.05dB/m,

which can be set in the software.

Optical smoke densitometer

ADI circuit and advanced optical design

Transmitted light, wavelength 880nm~950nm, range: 0~2 dB/m

Measuring range: 0 ~ 2 dB / m, measuring error shall not be greater than m×

5%+0.02dB/m

Wind speed

0 to 2 m/s continuously adjustable via software setting

When the wind speed is set at 0.2m/s, the fluctuation range is less than ± 0.02m/s;

When the wind speed is set at 1m / s, the fluctuation range is less than ± 0.1m/s

High temperature test function of smoke fire alarm

Room temperature ~ 55 ° C;

Temperature control accuracy + / - 1 ° C;

Dry heat sensitivity test can be carried out in the smoke box;

Standard number can be selected by software, and the program can automatically control to the corresponding temperature, which can meet the different requirements of European and national standards

Low temperature test function of smoke fire alarm

0 ° C ~ room temperature, temperature control accuracy + / - 1 ° C, and 0 ° C sensitivity test can be realized in the smoke box.

Dazzling test device

Removable dazzling test device, software on/off automatic control.

Constant smoke control function

The smoke box is equipped with constant smoke control function, which can set the constant smoke concentration and automatically control the smoke to be kept within the range of + / - 0.003dB/m

The temperature rise rate of smoke fire alarm test

0.2 K /min, 1 K /min, 3 K /min,

5 K /min, 10 K /min, 20 K /min,

30 K /min and the error meets the standard requirements.

Maximum temperature:

160 ° C (applicable to detector categories A1. A2. B, C, D, e, F, G, s, R)

Computer

Including industrial control computer and display, industrial control computer processor performance i5-9400. memory 8g, hard disk 128G SSD or above, display 23.8 inches.

Test software

Chinese and English

Software function

The equipment has the function of automatic operation detection. Start with one key, and the test process is automatically completed by the program. The process includes automatic wind speed switching, smoke rising control,temperature control, smoke sensing azimuth angle conversion, smoke exhaust, light interference process, test data display, test result storage, etc

Data storage and output

It can automatically display the sensitivity value when recording alarm. Each test record includes threshold value, smoke rising rate, temperature, test directions, serial number and time. The record table can be exported to csv format. The concentration or temperature curve data can be stored, and the concentration or temperature value of each point can be stored according and exported to csv format.
