Detailed Product DescriptionBrand:STDStandard:ASTM D1401Air Flow Rate:(94±5)ml/minConstant Temp
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Brand: | STD | Standard: | ASTM D1401 |
|---|---|---|---|
| Air Flow Rate: | (94±5)ml/min | Constant Temperature Heating Power: | 650W |
| Auxiliary Heating Power: 1000W: | 1000W | Cooling Power: | 500W |
| Temperature Control Accuracy: | ±0.5℃ | Kewwords: | Oil Analyzer Equipment |
| Name: | Demulsibility Characteristics Tester | ||
| Highlight: | oil analysis equipmentoil analysis machine | ||
This test method provides a guide for determining the water separation characteristics of oils subject to water contamination and turbulence. It is used for specification of new oils and monitoring of in-service oils.

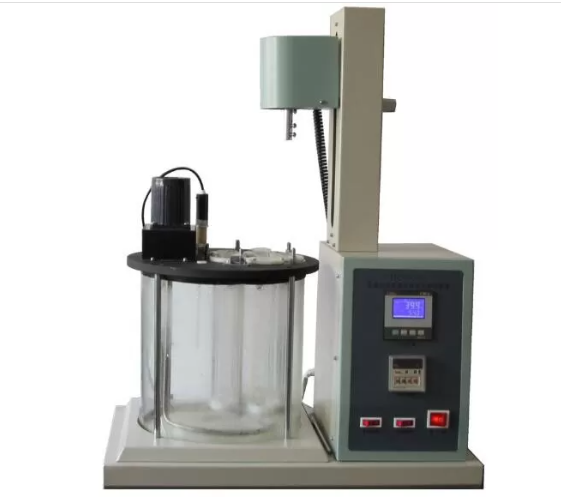

STD-DCT-I demulsibility characteristics tester is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids — Determination of demulsibility characteristics and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. It is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.
1. STD-DCT-I demulsibility characteristics test instrument adopts small bath and desktop structure. It is easy to operate and good-looking.
2. This apparatus adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.
3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.
| Temperature range | (Room temp.∼99.9)℃ |
| Temperature control accuracy | ±1℃ |
| Temperature resolution | 0.1℃ |
| Temperature display | LCD |
| Timing range | 1s∼9m 59s |
| Timing set | Digital control |
| Time display | Digital display |
| Stirring rate | (1500±15) r/min |
| Heating power | 1000W |
| Ambient temperature | (Room temp.∼35)℃ |
| Relative humidity | ≤85％ |
| Maximum Power consumption | 1200W |
| Dimension | 500mm×340mm×720mm |
| Power supply | AC (220±10%) V, 50Hz |
| Item | Unit | Qty | Remarks |
| Stirring vane | Piece | 1 | |
| Sample cylinder | Piece | 6 | 1 is spare |
| Thermometer (0℃～100 ℃, scale division is 1 ℃) | Piece | 1 | |
| Temperature sensor (200 mm in length) | Piece | 1 | Has been shipped to the instrument |
| Sheath for temperature sensor | Piece | 1 | Has been shipped to the instrument |
| Stopping ring for thermometer (1 #) | Piece | 6 | |
| 10A fuse (Φ5×20) | Piece | 2 |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
