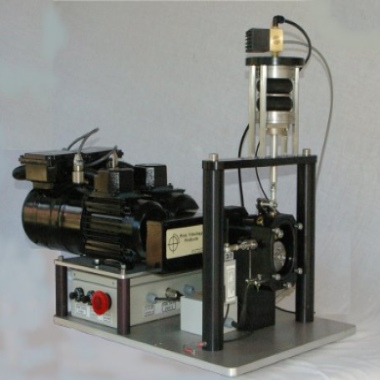

The STD-TE 54 Mini Traction Machine has two motors, one to provide the input power and one to absorb the transmitted power. The design is of the “over-hung” roller type, with test rollers fitted over-hung on the end of the machine test spindles. Loading is via servo controlled pneumatic bellows, with force transducer feedback.
| Ball Specimen Diameter: | 25 mm |
| Upper Disc Specimen Diameter: | 25 mm |
| Upper Disc Specimen Width: | 8 mm |
| Lower Disc Specimen Diameter: | 50 mm |
| Maximum Ball Speed: | 4.000 rpm |
| Maximum Ring Speed: | 2.000 rpm |
| Maximum Surface Speed: | 5.24 m/s |
| Maximum Load: | 500 N |
| Maximum Hertz Pressure (steel): | 2.0 GPa |
| Oil Bath Temperature: | ambient to 150°C |
| Heater Power: | 250 W |
| Temperature Sensor: | k-type thermocouple |
| Loading System: | Pneumatic bellows with force feedback |
| AC Vector Drive: | Two 0.75 kW closed loop with common DC link |
| Motors: | Continuous: 0.75 kW @ 50 Hz @ 1.450 rpm |
| Feedback: | 2.048 ppr encoder |
| Drive Ratios: | |
| Motor:Ball: | 1:1 |
| Motor:Ring: | 2:1 |
| Interface: | Serial Link Interface Module |
| Software: | COMPEND 2000 |
| Controlled Parameters | Motor speed |
| Motor speed difference | |
| Applied load | |
| Test bath temperature | |
| Measured Parameters: | Motor speed |
| Motor speed difference | |
| Applied load | |
| Traction force | |
| Test bath temperature | |
| Derived Parameters | Entrainment Velocity |
| Sliding Velocity | |
| Slide/Roll Ratio | |
| Traction Coefficient | |
| Services | |
| Electricity: | 380/415 V, three phase, 50/60 Hz, 1.5 kW, with neutral & earth |
| 220/240 V, three phase, 50/60 Hz, 1.5 kW, with neutral & earth | |
| Clean, dry air: | 4 cfm at 8 bar (120 psi) |
