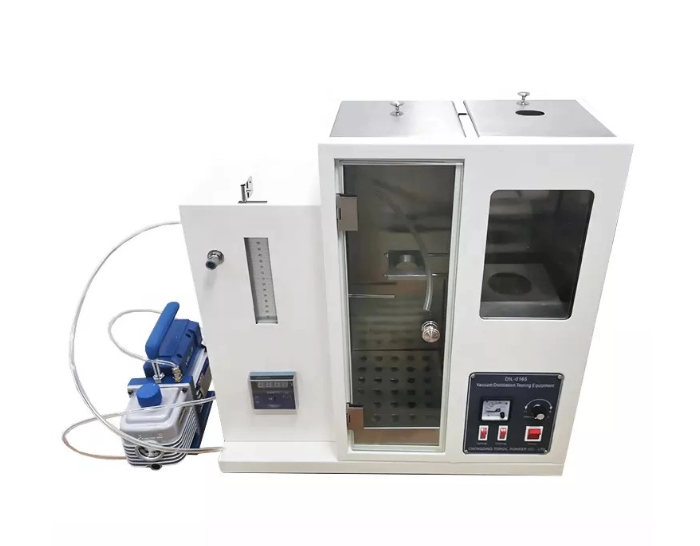

ASTM D1160 Petroleum Vacuum Distillation Tester

Detailed product description

Description

The instrument is designed and made as per the Industry Standard of People’s Republic of China SH/T 0165-92 “Test Methods for Distillation Characteristics of High Boiling Point Petroleum Products at Reduced Pressure”. It is suitable to determine the distillation characteristics of paraffin oils, lubricating oils, and other high boiling point petroleum products.

Main characteristics

1. The instrument is a desktop type. It s composed of distillation parts and vacuum parts. It is in accord with the requirements of ASTM D 1160

2. The heating power of the distillation heating furnace can be continuously adjusted. It also has a cooling device for the heating furnace, so the heating furnace can be cooled down after a test. It is convenient to make next sample determination.

3. The performance of vacuum pump is excellent. The maximum residue pressure is 2mmHg.

Main technical parameters

1. Power supply: AC 220V, 50Hz;

2. Heating power:

(1) Heater for distillation flask: 1000 W;

(2) Heater for receiving flask: 350 W;

3. Heating power for distillation flask heating furnace: 0~1000 W; Can be continuously adjusted;

4. Temperature controlling point for air bath of the receiving flask: room temperature~100 ℃; It can be continuously adjusted;

5. Temperature sensor for air bath: Pt100;

6. Temperature controlling mode for air bath: it can be automatically controlled by a digital temperature controller;

7. Temperature controlling accuracy: ±1℃;

8. Buffer vessel cubage: 1000 ml;

10. Illumination light in the air bath of receiving flask: Energy-saving lamp;

11. Working condition:

(1) Ambient temperature: 5~35℃;
