Detailed Product DescriptionPower:500WOverall Dimension:680mm × 420mm × 345mmTemperature Contro
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Power: | 500W | Overall Dimension: | 680mm × 420mm × 345mm |
|---|---|---|---|
| Temperature Control Range: | 20~100 ℃ Can Be Set At Will (optional Cooler). The Temperature Control Range Can Reach Below 20 ℃ By Configuring Cold Source | Temperature Control Accuracy: | ± 0.1 ℃ |
| Heating Power: | 1000W | Working Power Supply: | AC220V ± 10%, 50Hz |
| Test Hole: | 2 | Detection Range: | 0.6-1.20g/cm3 |
| Maximum Sampling Volume: | 500ml | Instrument Type: | Densitometer |
| Host Weight: | 18.4kg | Boundary Dimension: | 545mm * 370mm * 500mm (main Machine)，400mm * 400mm * 300mm (cooler) |
| Weight: | 18.4kg (main Engine) | ||
| Highlight: | Density Tester ASTM D1298Petroleum Product Density TesterDensitometer Oil Analysis Equipment | ||

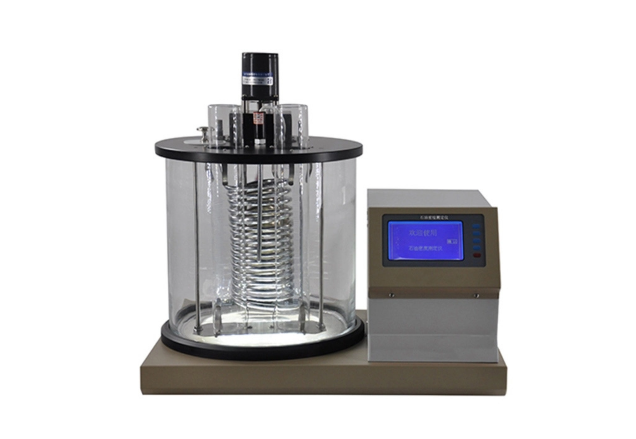

The densitometer is used to measure the density of transparent, low viscosity liquid and viscous liquid. Density refers to the mass number of substances contained in a unit volume at a specified temperature. The density of petroleum products increases with the increase of carbon, oxygen and sulfur content in their composition, so the density of petroleum products with more aromatic hydrocarbons, resins and asphaltenes is large, while the density of petroleum products with more cycloalkanes is in the middle, and the density of petroleum products with more alkanes is the smallest. Therefore, according to the density (or specific gravity) of petroleum products, the type and composition of oil products can be determined to some extent. It is widely used in petroleum, chemical industry, metallurgy, electric power, transportation, commodity inspection, scientific research and other departments.
It is controlled by a high-precision microcomputer, with fast speed and high precision.
It adopts PID self-tuning temperature control technology with high temperature control accuracy.
320 × 240 dot matrix LCD, touch sensitive buttons.
It is used to measure the density of transparent, low viscosity liquid and viscous liquid, with high temperature control accuracy, stability and reliability, and simple operation.
| Temperature control range | 20~100 ℃ can be set at will (optional cooler). The temperature control range can reach below 20 ℃ by configuring cold source |
| Temperature control accuracy | ± 0.1 ℃ |
| Heating power | 1000W |
| Working power supply | AC220V ± 10%, 50Hz |
| Test hole | 2 holes |
| Detection range | 0.6-1.20g/cm3 |
| Maximum sampling volume | 500ml |
| Instrument type | densitometer |
| Host weight | 18.4kg |
| Boundary dimension | 545mm * 370mm * 500mm (main machine),400mm * 400mm * 300mm (cooler) |
| Weight | 18.4kg (main engine) |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
