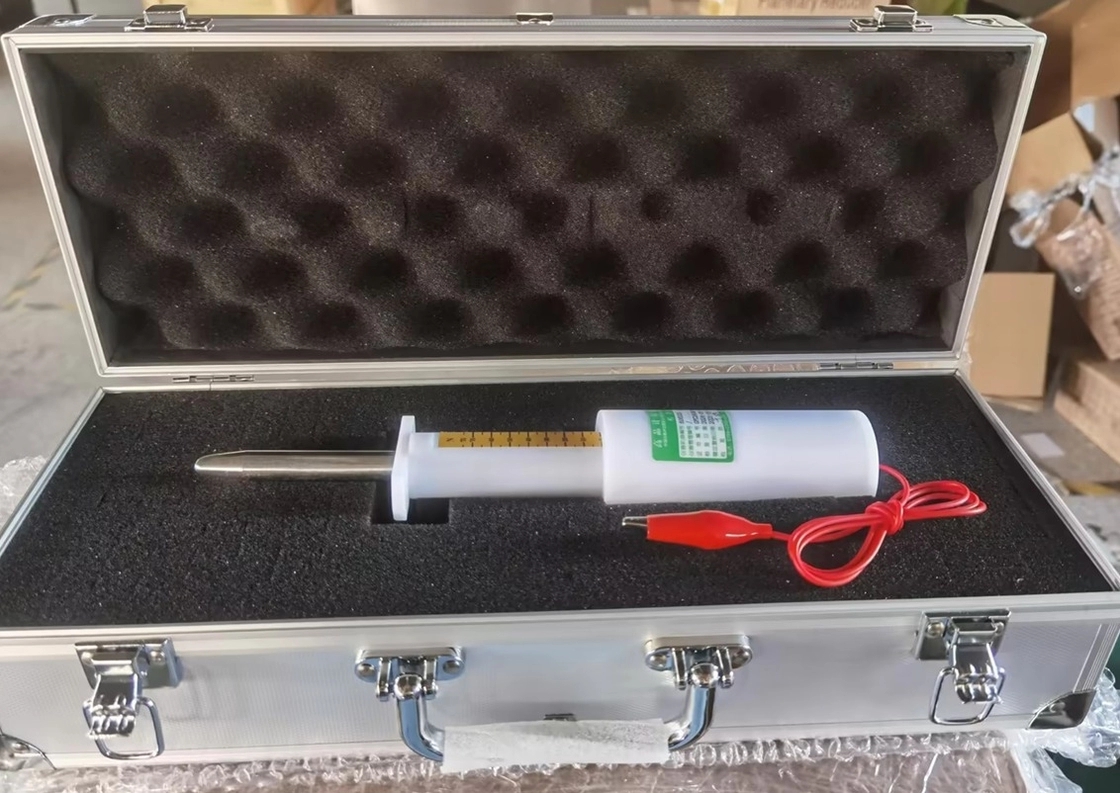

Detailed Product DescriptionMaterials:Nylon Stainless SteelNodular Finger Length:80mmNodular Fi
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Materials: | Nylon Stainless Steel | Nodular Finger Length: | 80mm |
|---|---|---|---|
| Nodular Finger Diameter: | 12mm | Dam-board Diameter: | 50mm |
| Dam-board Thickness: | 5mm | Standard: | IEC61032-Probe 11-Figure 7 |
Complies with IEC61032 Figure 7 Test Rig 11, GB/T16842 Test Probe 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, GB4706 and other standard requirements. It can also be used to test the mechanical strength of the holes in the housing or the internal baffle of the housing.
Can be ordered with 10~50N thrust.
Can be ordered with 10~75N thrust.
1. As shown in the figure, the finger portion of the thrust test finger cannot touch the energized parts or cannot approach the dangerous parts, and the 50mm-20mm stopper cannot be entered.
2. In the test requirements for preventing access to dangerous parts, the thrust test finger needs to apply thrust.
| Materials | Nylon+Stainless Steel |
| Nodular Finger Length | 80mm |
| Nodular Finger Diameter | 12mm |
| Dam-board Diameter | 50mm |
| Dam-board Thickness | 5mm |
| Standard | IEC61032 Figure 7 |
| Force | 10-75N |
