| Power Source: | AC 220V±10% 50Hz | Timer: | 0～60s Automatic Timing |
|---|---|---|---|
| Measurement Accuracy: | 0.01mm | Standard Slide Bar: | 47.5±0.05g |
| Standard Cone: | 2.5±0.05g | Environmental Requirements: | Temperature 5～40℃; Humidity ≤85 |
| Dimension: | 560×345×625 (mm) | Weight: | 24kg |
| Highlight: | Cone Penetration Oil Analysis Testing Equipment Lubricating Grease Cone Penetration Meter Cone Penetration Oil Analysis Tester | ||

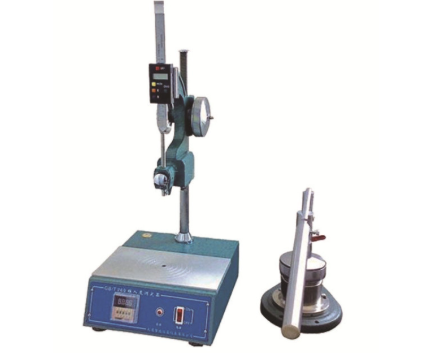

Cone penetration tester, in accordance with the requirements of GB/T 4985. GB/T 4509. GB/T 269. ASTM D217. ASTM D1321 test methods, suitable for the determination of petroleum wax with a needle penetration not greater than 250. solid and semi-solid asphalt materials, grease and petrolatum (petroleum jelly) with a needle penetration range from (0 ~ 500) 1/10mm.
| Power source | AC 220V±10% 50Hz |
| Timer | 0～60s automatic timing |
| Measurement accuracy | 0.01mm |
| Standard slide bar | 47.5±0.05g |
| Standard cone | 2.5±0.05g |
| Environmental requirements | temperature 5～40℃; humidity ≤85% |
| Size and weight | 560×345×625 (mm); 24kg |
Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
