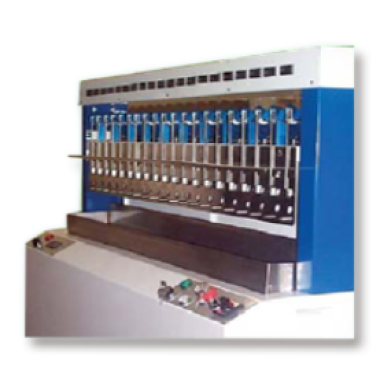

Geomembrane Fracture Resistance Tester

StandardASTM D7176 (Standard Test Method for Determining the Resistance of Geomembranes to Slow Stea

Email: info@standard-groups.com

Content

Standard

  • ASTM D7176 (Standard Test Method for Determining the Resistance of Geomembranes to Slow Steady-State Strain)
  • ISO 17548 (Geosynthetics - Determination of Tear Resistance)
  • GB/T 17642 (China National Standard for Geomembrane Mechanical Properties)

Product Advantages

  1. Unmatched Precision
    • High-resolution pressure sensor (±0.1 kPa accuracy) captures even subtle membrane deformations, critical for HDPE, LDPE, and PVC geomembranes.
  2. Automated Testing Protocols
    • Programmable test cycles simulate slow strain (0.1–10 mm/min) and rapid fracture events, replicating real-world installation and operational stresses.
  3. Safety First Design
    • Explosion-proof test chamber, emergency pressure relief valve, and laser-guided specimen alignment minimize operator risk.
  4. Industrial-Grade Durability
    • Stainless steel test cavity, corrosion-resistant hydraulic system, and anti-vibration feet ensure long-term reliability in demanding labs.
  5. User-Centric Operation
    • 10.1-inch capacitive touchscreen with multilingual support (English, Spanish, Arabic, Japanese) and AI-powered data analysis.

Product Features

  • Multi-Mode Testing:
    • Constant Pressure Test: Applies static load to assess long-term creep resistance.
    • Gradient Pressure Test: Increases pressure at 0.1–10 kPa/s to simulate sudden hydraulic impacts.
    • Cyclic Loading: Replicates tidal/wave pressure fluctuations for coastal lining applications.
  • Real-Time Monitoring:
    • High-speed camera (1,000 FPS) captures fracture initiation and propagation, with thermal imaging for localized stress analysis.
  • Data Management:
    • Cloud-compatible software stores 10,000+ test results, generates ISO/ASTM-compliant reports, and supports barcode scanning for sample tracking.
  • Universal Specimen Compatibility:
    • Adjustable clamps accommodate geomembranes up to 2mm thick, including textured and smooth surfaces.

Technical Parameters

ParameterSpecification
Pressure Range0–5,000 kPa (±0.1 kPa accuracy)
Strain Rate0.1–10 mm/min (adjustable)
Test Cavity Dimensions300×300×50 mm (W×L×H)
Pressure Resolution0.01 kPa
Power Supply220V/110V AC, 50/60Hz, 1.5kW
Dimensions (L×W×H)800×600×1,200 mm
Weight200 kg
Operating Environment5–40°C, ≤85% RH (non-condensing)

Accessories Included

  1. Specimen Clamps (4 pcs): For securing textured and smooth geomembranes during testing.
  2. Calibration Kit: Pressure gauge and certification for annual validation.
  3. Safety Gear: Heat-resistant gloves, face shield, and emergency eyewash station.
  4. User Manual & Software: Digital guide (multilingual) + AI analytics platform for fracture pattern recognition.
  5. Cleaning Kit: Brush, vacuum nozzle, and lint-free cloth for post-test maintenance.

Ideal For:

  • Geomembrane manufacturers (landfills, mining, water containment)
  • Civil engineering testing laboratories
  • Environmental protection agencies
  • Infrastructure contractors (tunnels, dams, canals)

企业微信截图_20250515153939
