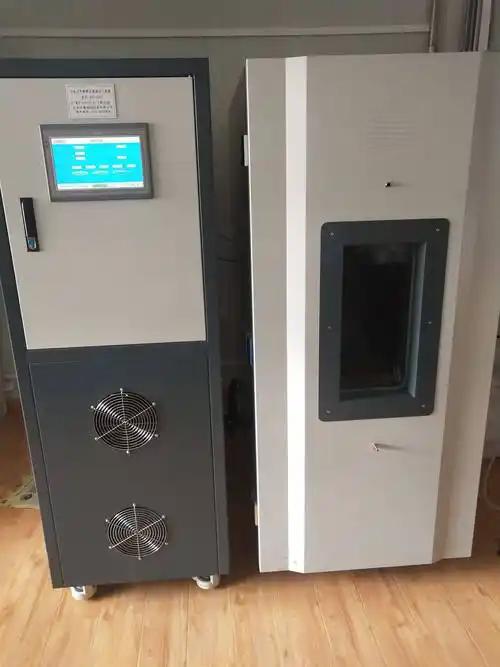

Flooring VOC Emission Testing Chamber
StandardISO 16000-9 (Indoor Air - Determination of Volatile Organic Compounds)ASTM D5116 (Standard G
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Content
Standard
- ISO 16000-9 (Indoor Air - Determination of Volatile Organic Compounds)
- ASTM D5116 (Standard Guide for Small-Scale Environmental Chamber Determinations of Organic Emissions from Indoor Materials/Products)
- EN 16516 (Construction Products - Determination of Emissions of Volatile Organic Compounds)
- California CDPH Standard Method v1.2 (CA 01350) for VOC emissions testing
This certification portfolio guarantees adherence to regulatory requirements in North America, Europe, and Asia.
Product Advantages
- Ultra-Sensitive VOC Detection
- PID (Photoionization Detector) sensor with 1ppb (parts per billion) resolution identifies formaldehyde, benzene, toluene, and other harmful VOCs.
- Rapid Testing Cycles
- Accelerated testing mode reduces analysis time by 40% compared to traditional chambers, delivering results in 24–72 hours.
- Smart Climate Control
- Precision temperature (15–60°C) and humidity (30–80% RH) regulation with ±0.5°C/±2% RH accuracy.
- User-Centric Design
- 10.1-inch HD touchscreen with multilingual interface (English, German, Japanese, Korean) and remote monitoring via mobile app.
- Low Operating Costs
- Energy-efficient design reduces power consumption by 30%, with recyclable air filtration system minimizing replacement costs.
Product Features
- Dual Testing Modes:
- Small-Scale Chamber (1m³) for rapid prototyping and R&D.
- Full-Scale Chamber (22.5m³) for regulatory compliance testing (e.g., FloorScore®, Indoor Air Comfort GOLD).
- Real-Time Data Logging:
- Continuous monitoring of 50+ VOCs with cloud-based data storage and ISO-compliant report generation.
- Safety First:
- Explosion-proof casing, gas leak detection, and automatic emergency ventilation for operator safety.
- Modular Expandability:
- Optional upgrades for formaldehyde-specific sensors, humidity cycling, and third-party software integration.
Technical Parameters
| Parameter | Specification |
|---|
| VOC Detection Range | 1ppb – 10ppm (adjustable per compound) |
| Temperature Range | 15–60°C (±0.5°C accuracy) |
| Humidity Range | 30–80% RH (±2% RH accuracy) |
| Airflow Rate | 0.1–1.0 m³/min (adjustable) |
| Chamber Volume | 1m³ / 22.5m³ (dual configurations) |
| Power Supply | 220V/110V AC, 50/60Hz, 1.5kW |
| Dimensions (L×W×H) | 1.2×1.2×2.0 m (1m³ chamber) / 5.0×3.5×2.2 m (22.5m³ chamber) |
| Weight | 250 kg (1m³) / 1,200 kg (22.5m³) |
Accessories Included
- VOC Sampling Kits (10 pcs): Tedlar bags, DNPH cartridges, and syringes for ISO 16000-compliant sampling.
- Sensor Calibration Kit: Zero/span gases and certification for annual validation.
- Air Filtration Unit: Activated carbon filter for purging residual VOCs between tests.
- Software Suite: Real-time monitoring platform with AI-powered emission trend analysis.
- User Manual & Certification: Multilingual guide + FloorScore®/Indoor Air Comfort GOLD compliance documentation.
Ideal For:
- Flooring manufacturers (LVT, vinyl, carpet, engineered wood)
- Certification laboratories (GREENGUARD, Eurofins)
- Building material suppliers
- Architectural firms seeking LEED/WELL credits
