Product Information:Product Introduction:The tester conforms to the technical indicators and re
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

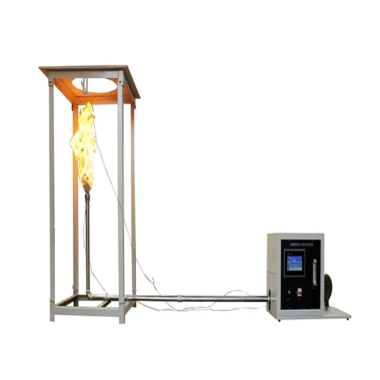

The Fire Retardant Coating Tester (Large Plate Method) is designed to evaluate the fire resistance of decorative coatings in laboratory conditions, following national standards. The instrument measures combustion mass loss and chemical volume to assess the effectiveness of fire-retardant coatings. It features high automation, precise temperature control, and touchscreen operation for reliable and user-friendly testing.
The flame-retardant coating tester (large panel method) is widely used for determining the flame resistance characteristics and burning time of fire-retardant coatings. These devices comply with the GB12441-2005 standard, ensuring the accuracy and reliability of the test results. The main parameters of the tester include power requirements, temperature uniformity, sample size, temperature control system, thermocouples, timer accuracy, and automatic alarm, all of which ensure the stability and safety of the testing process.
GB12441-2018: Finishing fire resistant coating
GB12441-2005 : Finishing fire retardant paint
1. The degree of automation is high, and the temperature error is lower than the national standard
2. Reasonable structure design, convenient operation, and maintenance
3. Touch screen control, easy to test
| Item | Description |
|---|---|
| Control System | PLC + NA view professional software, touch screen control, easy to operate |
| Voltage and Power | 220V±10%, 50HZ, 300W |
| Working Environment | Indoor without forced ventilation |
| Blower Air Volume | Adjustable from (1~5) m³/min |
| Armored Thermocouple | Outer diameter ≤ 3mm, wire diameter 0.5mm, accuracy not lower than Class II, range 1300ºC |
| Timer Accuracy | Error not more than 1s/h |
| Back Fireside Temperature Measurement | Five-way thermocouple measurement, automatic alarm when temperature reaches 220ºC |
| Ambient Temperature Range | -5ºC~30ºC |
| Relative Humidity | ≤85% |
| Gas Source | Liquefied petroleum gas (Note: User provides gas source and connector) |
| Instrument Dimensions | Test plate bracket: 760 mm * 760 mm * 1500 mm; Control box: 800 mm * 500 mm * 500 mm |
| Specimen Size | 900mm * 900mm * 5mm ± 0.2mm first-class five-layer plywood |
| Time-Temperature Rise Curve Control | Automatically controls and records the time-temperature rise curve |
| Backfire Temperature Alarm | Automatic alarm when backfire temperature reaches 220ºC |
Turn on the power and access the main control interface of the device's touchscreen.
Click "Start" to begin the test, and simultaneously open the flow meter counterclockwise, adjusting the gas flow rate to approximately 15 L/min.
The system automatically controls the test according to the standard temperature rise curve. After 5 minutes of testing, the gas flow rate increases to its maximum value.
Once the backfire temperature reaches the set temperature, the test automatically stops and a prompt screen appears.
The Fire Retardant Coating Tester (Large Plate Method) provides precise, automated evaluation of coating fire resistance. Its compliance with GB12441 standards ensures reliable and repeatable results for laboratory testing and quality control.
1. What is this product?
It is a testing instrument for evaluating the fire resistance of decorative coatings using a large plate method.
2. What is this product used for?
To measure flame resistance, burning time, and chemical stability of fire-retardant coatings under controlled laboratory conditions.
3. What is the working principle of this product?
The sample is exposed to controlled flame and airflow; the system monitors temperature rise and combustion behavior, automatically stopping and alerting if backfire temperature exceeds 220°C.
4. Why is this product important?
It ensures fire safety performance of coatings, helping manufacturers meet national standards and regulatory requirements.
5. What industries is this product suitable for?
Construction materials, coatings, fire safety laboratories, research institutions, and quality control departments.
