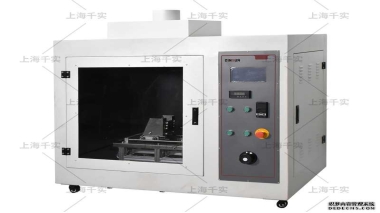

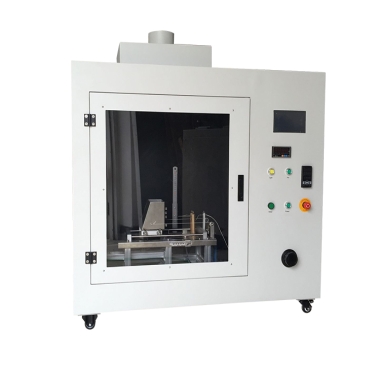

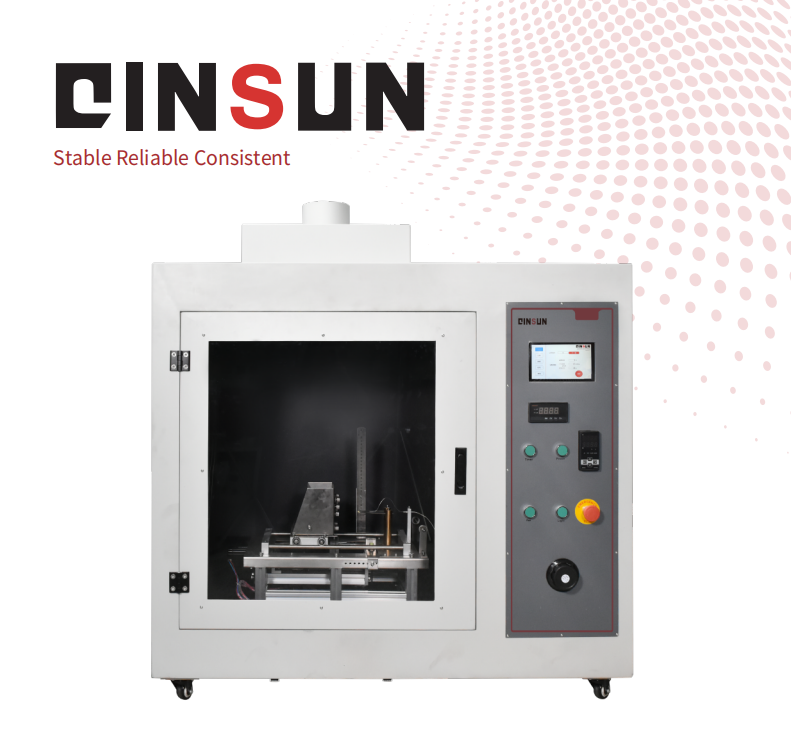

Glow wire tester

F242 Glow-wire tester simulates thermal stress from heat sources to test circuit component flammability, widely used in electronics, appliances, etc. It predicts circuit safety, controls production, and verifies performance. The test applies short-term heat to samples, assessing fire risk by observing light-off states. It measures ignition hazards of materials by burning them at specified temps and pressures.

Application

It is used in the evaluation of flammability tests and light-off temperature tests for electrical equipment and its components and accessories, as well as solid electrical insulating materials or other solid flammable materials.

It is used for the test of ignition hazard of electronic and electrical products, the evaluation of hot burning performance and the test of high temperature resistance.

It is used to determine the light-off property, light-off temperature, flammability and flammability index of solid insulating materials and other solid combustible materials.

It is used to test flame retardant properties for the insulated enclosure of household appliances, switch panels, printed circuit boards,and insulating materials.

It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervisiondepartment, etc.

Standards

ASTM D 6194-03: Standard Test Method for Glow-Wire Ignition of Materials

ASTM D6194: Standard Test Method for Glow-Wire Ignition of Materials

IEC 60695-2-10:2021: ：Fire hazard testing - Part 2-10: Glowing/hot-wire based test methods - Glow-wire apparatus and common test procedure

IEC 60335: Household and similar electrical appliances – Safety

IEC60695-2-1: Fire hazard testing - Part 2-1: Test methods - Section 1: Glow-wire test methods - General

IEC60695-2-10: Fire hazard testing - Part 2-10: Glowing/hot-wire based test methods - Glow-wire apparatus and common test procedure

IEC60695-2-11: Fire hazard testing - Part 2-11: Glowing/hot-wire based test methods - Glow-wire flammability test method for end-products

IEC60695-2-12: Fire hazard testing - Part 2-12: Glowing/hot-wire based test methods - Glow-wire flammability index (GWFI) test method for materials

IEC60695-2-13: Fire hazard testing - Part 2-13: Glowing/hot-wire based test methods - Glow-wire ignition temperature (GWIT) test method for materials

UL 746 A: Standard for Polymeric Materials - Use in Electrical Equipment Evaluations

VDE 0620: Electrical Appliances - Safety Requirements for Household and Similar Purposes

GB/T 5169.10-2006: Fire hazard testing for electric and electronic products - Part 10: Glow-wire test method - General

EC 60695-2-10-2013: Fire hazard testing for Electrical and electronic products -- Part 10: Glowing-wire/ Hot-wire based test method, Glowing-wire apparatus and common test procedure.

GB/T 5169.11-2006/IEC 60695-2-11-2000: Fire hazard testing for Electrical and electronic products -- Part 11: Glowing-wire/Hot wire basic test method, Glowing-wire flammability test method for finished products.

GB/T 5169.12-2006/IEC 60695-2-12-2000: Electrical and electronic products ,Part 12: Glowing- wire/Hot-wire based test method, Glowing-wire flammability index (GWFI) test method for materials.

GB/T 5169.13-2006/IEC 60695-2-13-2000: Electrical and electronic products ,Part 13: Glowing- wire/Hot wire basic test method, Glowing-wire flammability (GWFI) test method.

Feature

Transparent safety door

The heat-resistant glass observation window allows the test to be observed at any time during the test while keeping the test free from external environmental disturbances.

Automatic heating, illumination, exhaust device

Glowing-wire automatic heating timing, equipped with automatic control of the glowing-wire contact position, precise control, convenient and reliable, and the test device is equipped with lighting and exhaust.

Intelligent touch screen control panel

The microcomputer control system is more efficient and reliable, and the programmable 7-inch color LCD touch screen realizes various functions such as control, detection, calculation and data display.

Stepping motor control - accurate moving speed

The moving speed of the sample is controlled by high-end stepping, which has high precision and long service life. In addition, the test device is equipped with flame ruler, and the flame height can be observed at any time during the test.

Sample rack dis-assembly type design

The sample holder of the test device can be removed for loading and cleaning,and it use physical pressure, which has precise pressure,convenient operation and high efficiency.

Parameters

Test Procedures

The operating procedure for the hot-wire test apparatus includes the following steps:

Checking the instrument: Turn on the power switch and check if the instrument is functioning properly.

Setting the temperature: Adjust the temperature to the required test temperature and wait until the temperature display shows the desired temperature.

Starting the test: Press the start button to begin the test.

Observing the test sample: Observe the residue dropped from the test sample during combustion.  Press the stop button immediately when the sample stops burning.

Recording the results: Record the flame height during combustion. At the end of the test, press the exhaust button to remove the smoke.

Cleaning the equipment: Turn off the power switch, remove the test sample, record the test results, clean the dirt inside the chamber, close the exhaust vent, and turn off the main power switch.

These steps ensure the accuracy and safety of the hot-wire test apparatus. Operators should receive regular training to ensure the reliability and comparability of the test results.
