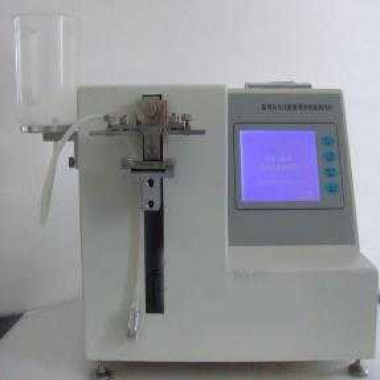

Syringe slide performance tester

The Syringe Slide Performance Tester is a specialized instrument designed to measure the push and pull forces of syringe plungers, ensuring smooth operation, precise dosing, and consistent quality. It displays real-time force data, records the maximum and minimum push forces, and generates movement-force curves. The results can be printed directly using the built-in printer, making it ideal for both production quality control and R&D of syringes.

Application

This tester is suitable for evaluating the sliding performance of various medical devices, including:

(1) Disposable sterile syringes – 1 mL to 200 mL, assessing plunger smoothness and push-back force.

(2) Insulin syringes – verifying consistent dose delivery and ease of use.

(3) Infusion syringes – testing sliding force under different fill volumes.

(4) Catheter syringes – ensuring smooth plunger movement for accurate administration.

(5) Quality control in syringe manufacturing – confirming compliance with national and international standards.

(6) Research and development – assessing new syringe designs and materials for optimal plunger performance.

Standards

The instrument is designed to meet the following standards:

(1) GB 15810-2001: Disposable sterile syringe (China)

Optional expansions can comply with:

(2) ISO 7886-1:2017: Sterile hypodermic syringes – Part 1 (International)

(3) ISO 8537-2016: Disposable hypodermic needles (International)

Features

(1) 5.7-inch (120 × 90) single-color LCD touch screen for real-time display.

(2) Chinese menu display with keyboard control for intuitive operation.

(3) Real-time recording of starting force, maximum force, minimum force, and core rod movement.

(4) Built-in printer for immediate test result output.

(5) Intelligent controller with CPU, motherboard, LCD, keyboard, and power supply.

(6) Adjustable testing speed and load range to accommodate different syringe types.

(7) User-friendly interface requiring minimal training.

Parameters

Accessories

(1) Main unit – 1 set

(2) Printing paper – 1 roll

(3) Set of clamps – 1 set

(4) Operation manual – 1 set

(5) Warranty card – 1 year

(6) Free national standard upgrades

Test Procedures

(1) Mount the syringe securely on the fixture using the provided clamps.

(2) Set the nominal capacity and test parameters via the keyboard interface.

(3) Start the test; the device will automatically record push/pull forces, movement data, and generate force curves.

(4) Observe real-time values for starting force, maximum force, minimum force, and plunger behavior.

(5) Print the test report for documentation and evaluation.

Maintenance Information

(1) Keep the instrument clean and free of dust or liquid ingress.

(2) Periodically check the accuracy of load measurement and calibrate if necessary.

(3) Avoid exposing the instrument to excessive heat, vibration, or electromagnetic interference.

(4) Inspect clamps and fixtures regularly to ensure proper alignment and secure mounting.

(5) Follow safety instructions for electrical and mechanical operation.
