Product Overview:

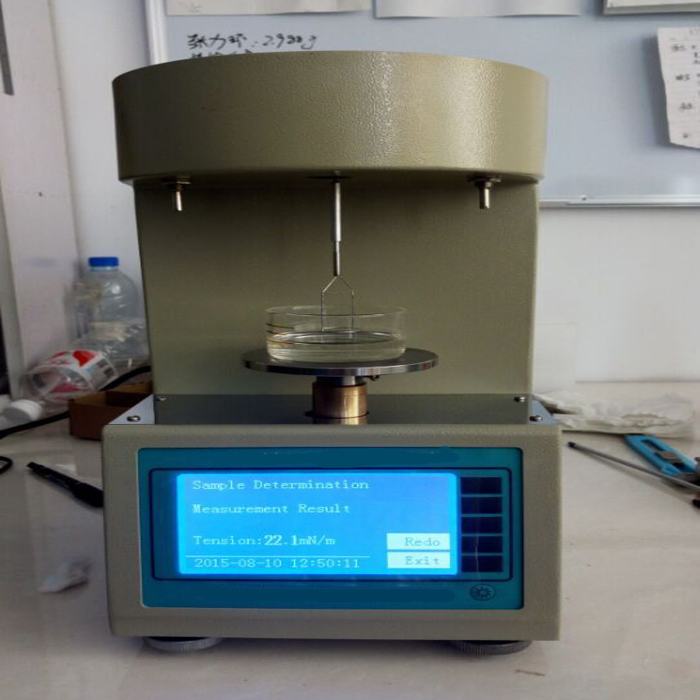

ISO1409 ASTM D971 Automatic Interfacial Tension Tester for duNouy Ring Method.
is a simple and easy-to-use testing instrument that uses physical methods instead of chemical methods. With the automatic interface tension meter, the surface and interface tension values of various liquids can be quickly and accurately measured, and the results are automatically displayed.
Product Features:
Round test, compared to the plate method, the test method has been verified for many years and is more widely used. The test accuracy of the liquid that can be measured in the ring method measurement range (0-200mN / m) is higher.
No need to calculate by formula, the tension value can be displayed directly.
Electric adopts Taiwan Delta PLC modular independent electric control system, different product components can be used interchangeably, strong versatility, stable performance, high accuracy, and extremely low failure rate.
Adopting 5-inch Delta true color touch screen input, with good man-machine interface and sensitive touch, it is easy to operate and easy to use for the testers who first contact with this kind of instrument.
Equipped with push-pull windshield to prevent the influence of air flow on the test results.
Meet Standards:
GB/T22237,
JB/T9388,
JB/T18396,
SH/T1156,
GB/T6541,
ISO1409,
ISO6295,
GB/T5549
Technical Parameters:
Measuring range:0-200mN / m
Resolution:0.01mN / m
Platinum ring:R9.55
Platinum wire:r0.3
With peak hold function
The test tray can be raised and lowered automatically
Control mode:PLC (programmable controller)
Input method:5 inch Delta color touch screen
Power supply:220V 50HZ
Dimensions(L * W * H):230 × 450 × 430 (mm)
