Respirator Fit Tester

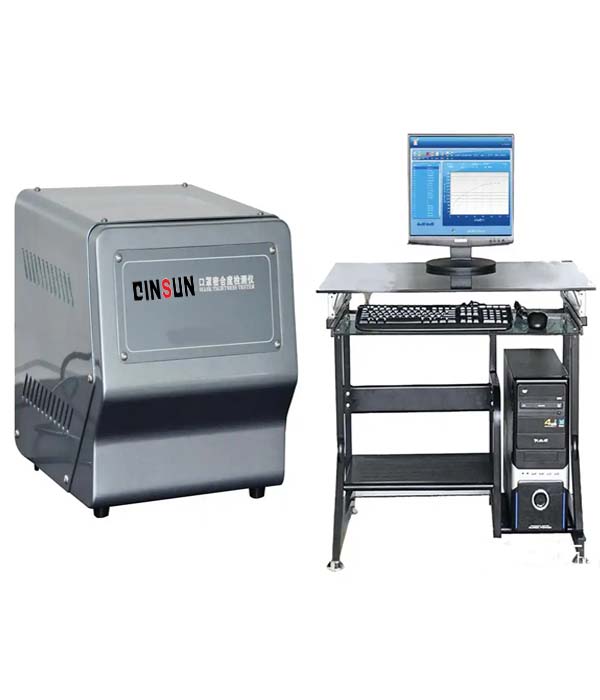

The Qinsun PortaCount Respirator Fit Tester assesses the overall integrity of masks by performing an aerosol leak test using the PortaCount particle detector. The instrument operates under controlled negative pressure and constant airflow, providing accurate quantitative fit measurements. Masks are tested on a full headform with an enhanced bladder seal system to simulate real-life usage, allowing the mask’s head harness to function naturally and ensuring more precise test results.

This system eliminates the guesswork and variability of qualitative fit tests, providing objective and repeatable evaluation of mask fit and protection performance.

Application

The PortaCount Respirator Fit Tester is suitable for fit and integrity testing across the following industries and products:

(1) Military and Defense: CBRN gas masks, full-face respirators — overall fit and protection factor assessment

(2) Occupational Safety: commercial respirators, industrial dust masks, half-face and full-face respirators — fit testing and leak detection

(3) Medical and Healthcare Industry: surgical masks, N95/FFP masks, medical respirators — quantitative fit evaluation

(4) Research and Development: development of new respirator models and harness designs, optimization of fit and seal

(5) Quality Control: production batch verification, ensuring proper mask fit for various models and sizes

(6) Third-Party Testing Laboratories: certification testing, evaluation of mask protection factor, exhalation valve and drink tube performance

The instrument is widely used for product development, R&D, production quality control, and laboratory fit testing.

Standards

The instrument complies with and can be applied to the following standards (including but not limited to):

(1) ISO 16975-3:2017 – Respiratory Protective Devices — Selection, Use, and Maintenance — Part 3: Fit Testing Procedures

Features

(1) Separate testing for overall mask integrity (Protection Factor), exhalation valve, and drink tube

(2) Integrated aerosol wand for pinpointing leak locations, enabling immediate evaluation and repair

(3) Full headform configuration allows the mask’s head harness to function naturally, simulating real-life use

(4) Single headform with enhanced bladder seal system provides a tight seal for most gas mask and full-face respirator types and sizes

(5) Easy-to-read display and intuitive step-by-step test sequence minimize operator training requirements

(6) Objective quantitative measurement eliminates the uncertainty of qualitative fit testing

Included Items

HEPA Filter Canister ×2

Drink Tube Sampling Hose

DT & EV Bypass Hose

Emery Oil (500 ml)

PortaCount Fit Tester Interface Cable (for Models 8030/8038 only)

MITA Computer Cable

USB to Serial Converter

MITA Communicator Software CD

Quick Start Guide

Self Check Components Reference Card

Test Procedures

(1) Install the mask on the full headform and secure the head harness

(2) Connect the aerosol detection system and flow control components

(3) Perform aerosol leak test under negative pressure and constant airflow

(4) Use the integrated wand to locate any leaks in exhalation valves or drink tubes

(5) Record Protection Factor (PF) and evaluate mask integrity

(6) Repeat test for multiple mask models or samples

(7) Perform cleaning and maintenance of headform and tubing after testing

Maintenance Information

(1) Clean the headform, tubing, and aerosol wand after each test

(2) Replace HEPA filters as recommended to ensure accurate measurement

(3) Store the instrument in a clean, dry environment

(4) Regularly inspect cables, connectors, and software interface components

(5) Maintain calibration documentation and follow ISO 16975-3:2017 guidelines for periodic verification

FAQ

1. What is this product?

The Respirator Fit Tester evaluates the fit and seal of protective respirators on a wearer’s face. It detects potential leakage points to ensure that the respirator provides the intended protection against airborne particles, gases, or aerosols.

2. What is it used for?

It is used to verify the proper fit of N95/FFP respirators, full-face masks, and other tight-fitting protective equipment. Ensures compliance with occupational safety standards and confirms that individual users receive adequate respiratory protection.

3. How does it work?

The device measures inward leakage using particle counting or controlled test aerosols. The wearer performs a series of exercises while the tester continuously monitors air inside the mask. The system calculates a fit factor, indicating the mask’s sealing efficiency and identifying improper fit or facial seal issues.

4. Why is it important?

A poor-fitting respirator compromises protection, increasing the risk of exposure to hazardous aerosols or contaminants. Fit testing is critical for occupational safety, regulatory compliance, and user confidence in high-risk environments.

5. Which industries use it?

Widely applied in healthcare, industrial manufacturing, chemical processing, research laboratories, and emergency response organizations. Supports employee safety programs, PPE certification, and respirator selection for optimal protection.
