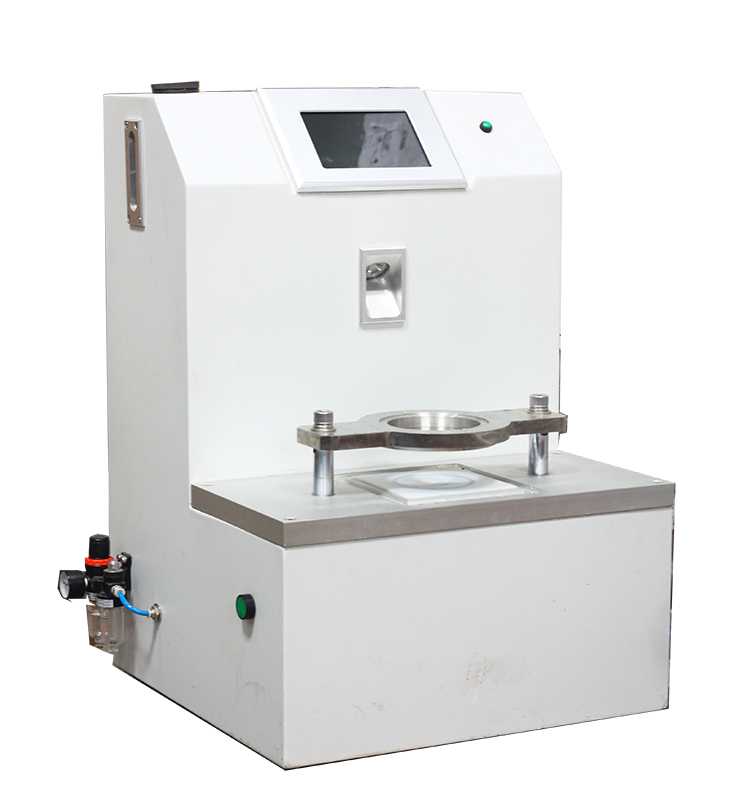

Automatic Hydrostatic Head Tester

Hydrostatic Head Tester Application

The hydrostatic head tester can be used for waterproof moisture permeability testing of high density fabrics, laminated fabrics, coated fabrics and the so on, such as canvas, felt cloth, tarpaulin, airtight fabric, outdoor sportswear material, umbrella test, waterproof fabric testing, etc .; it can also be used for testing the body fluid permeability and blood permeability of medical protective clothing, the chemical liquid permeability of chemical protective clothing; breathable waterproof non-woven / non-woven fabric, permeability test of filter fabric; it can also be applied to water resistance test for paper and paperboard.

Testing Standards:

GB/T 4744, AATCC 127, ERT 120-1/160-0, BS EN 20811/3321/3424, AFNOR G07-057, ISO 811, JIS L1092A, JIS L1092.B-a, JIS L1092 B-b, ASTM F903C, ASTM F1670, ASTM F1671, EN 1734, ISO 1420, FZ/T 01004




Automatic Hydrostatic Head Tester Feature

The pneumatic chuck with  pressure regulating function, can provide superior clamping force, even under high pressure test condition, there will not occur leakage failure lead to test failure; at the same time ,it can meet the long-term test of the seal; chuck control has two ways to choose, mechanical button control and touch screen control.

LED observation light with high brightness, good visual in all directions, to ensure that the observation conditions is facilitate to observe and confirm the three drops of water test end point.

Technical Parameters:

9.Pneumatic clamps
