Water Vapour Permeability Tester

Information

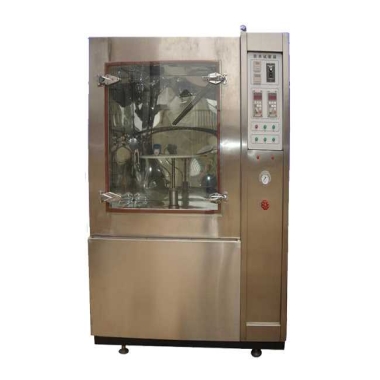

The device is a constant temperature and humidity moisture permeability test device, which is suitable for sportswear and other requirements of the waterproof, moisture permeability of both the fabric, as well as plastic film, processed paper and other moisture-resistant packaging materials for the purpose of moisture permeability evaluation test.

Place a quantity of anhydrous calcium chloride into the empty moisture-permeable cup. Then install the sample and seal the moisture-permeable cup with the sample. The moisture permeable cup of the sealed package was placed in a laboratory for fixed temperature and humidity conditions for a period of time, and the moisture permeability of the sample was calculated by increasing the weight of anhydrous calcium chloride, thereby determining the moisture permeability of the sample.

Apparatus Standards

JIS L1099

ASTM E96/E96M

GB/T 12704

features

1. apply a variety of standards and measurement methods.

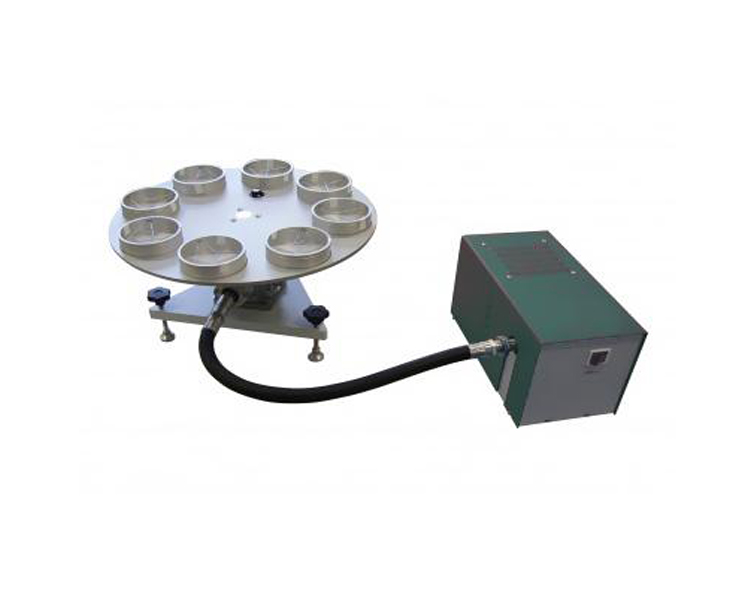

2. Rotary sample holder, adjustable speed, uniform test than fixed sample holder.

3. the wind speed is adjustable, the use of imported wind speed sensor calibration, speed accuracy and stability.

4. temperature and humidity control using PID algorithm, small fluctuations, effectively prevent temperature and humidity overshoot; with temperature and humidity calibration function, can well avoid the sensor bias caused by long-term use.

5. high-precision temperature and humidity sensors, test data stability, high precision.

6. SCM control, color touch screen operation, modular design, temperature and humidity digital settings, intelligent control, real-time display of temperature and humidity and time.

7. Input parameters in the color touch screen to calculate WVT, WVP and PV values.

8. the instrument is equipped with PC software, can record temperature and humidity curve, easy to calculate and print a large number of data reports.

Parameters

1.Temperature range: 20～60 ℃;

2.Moisture range: 40～95% (no load);

3.Temperature accuracy: ±0.5 ℃ (no load);

4.Humidity accuracy: ±3% (no load);

5.Freezer: air-cooled airtight compress;

6.Cooler: finned type;

7.Humidifier: Pot-type (with vacuum firing guard);

8.Heater: finned radiator (with over guard );

9.Fan:2 sets (up and down);.

10.Wind speed range:0.5～1.5 m/s;

11.Rotary stand:2 sections (270mmφ);

12.Indoor dimension: W400×D360×H500mm approx;

13.Power source:AC 220V 50Hz;

14.Outside size: W1100×D550×H1470mm approx.
