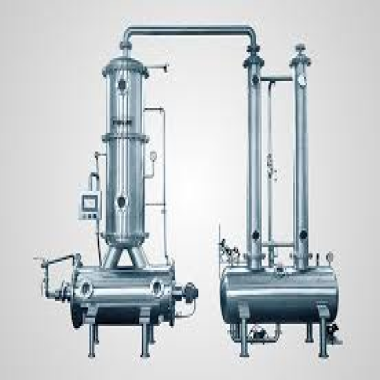

Vacuum low temperature multi-effect concentrator

Equipment Overview

Vacuum low-temperature multi-effect concentration equipment is an automated equipment that recycles the steam generated by the previous effect material as a heat source to evaporate and concentrate the liquid, and there is no waste heat emission in the whole process. It is divided into heat pump type and waste heat type. The heat pump type uses electricity, and the waste heat type uses the factory's excess heat source and steam as a heat source to evaporate the liquid in multiple effects.

Equipment Advantages

⒈ Easy-to-open maintenance door and easy-to-remove heat exchanger end cover make the maintenance and cleaning of the unit easier.

⒉ The heat exchanger adopts a high-flow forced circulation design to reduce the maintenance of the heat exchanger scale.

⒊ Adopting a four-effect evaporation and concentration design, it can save 75% energy compared to single-effect evaporation.

⒋ Evaporation and concentration under low-temperature vacuum can achieve continuous feeding and continuous discharging.

⒌ Adopting multi-stage low-temperature evaporation and concentration can effectively control the discharge concentration, and online concentration monitoring and control can realize automatic discharging.

⒍ It can achieve low-temperature evaporation in the range of 20~60 degrees (single effect~four effects), which can effectively maintain the effective ingredients of the product.

⒎Adopting patented integrated design structure, the equipment is compact and occupies a small area.

⒏Fully automatic intelligent PLC and touch screen control.
