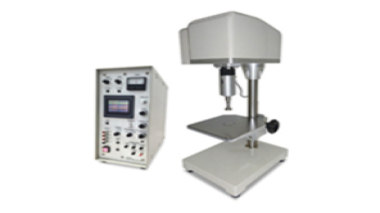

KES - G5 Compression Tester

Introduction to the Tester's Functions This tester simulates the sensation when a human fingertip touches an object. It can accurately test parameters such as compression hardness, compression work, and resilience. The tester has a detection function on the pressurization side, thus supporting various types of tests. Features - **High - sensitivity measurement**: The device can detect extremely small forces at the beginning of pressing down. - **Detection of compression resilience**: Even the resilience after pressing down, which is usually too small to be measured, can be detected by this device. Technical Parameters - **Dimensions/Weight**    - Device body: W170×D220×H460(mm)/13kg    - Electronic amplifier: W180×D400×H400(mm)/13kg, Power supply: AC100V, Maximum power consumption: 20W - **Test environment temperature and humidity**: 20～30°C/50～70%RH, without condensation. A certain temperature and humidity need to be maintained during the test. (Standard temperature and humidity conditions: 20°C/65%RH). ※It should be installed in a place less affected by wind and vibration. - **Compression load test tester**: Differential transformer (ring - type dynamometer). Load (full - scale range): Switchable among four ranges of 100gf, 200gf, 500gf, and 1000gf. Accuracy: Within ±0.5% of the full - scale range. - **Compression deformation measurement tester**: Potentiometer. Deformation: Up to 20mm. Accuracy: Within ±0.5% of the full - scale range. - **Indenter area**: 2 cm², circular (standard) - **Compression deformation speed**    - Standard test: 0.02 (mm / sec) <1mm/50sec>    - High - sensitivity test: 0.0067 (mm / sec) <1mm/150sec>. Other speeds can also be set as required.

- **Specimen size (standard)**: Square, 2cm～10cm
