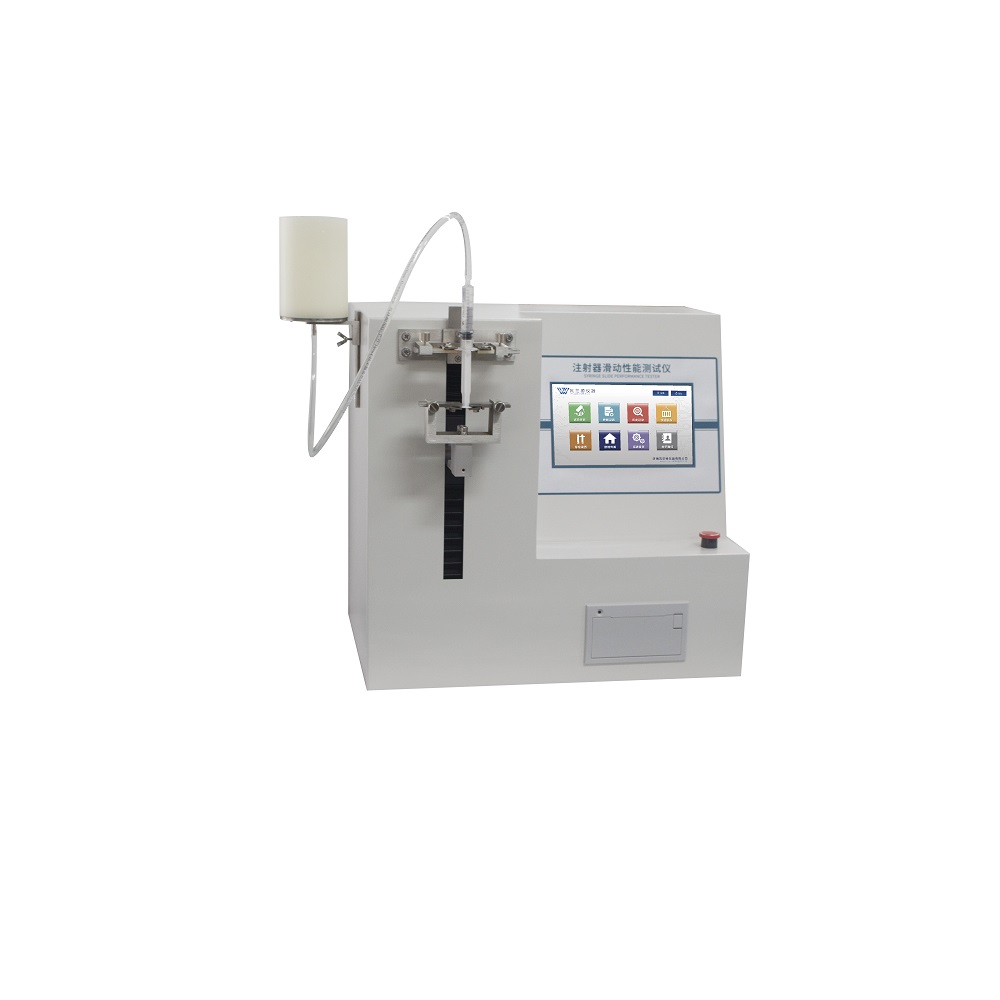

Syringe sliding performance tester

Product introduction

　　Using a 5.7-inch （120x90） single-color LCD touch screen, the Chinese menu display,

and the keyboard to select the nominal capacity of the syringe, real-time display of starting

force, average force, push back maximum force, push back minimum force and core rod

movement and force record chart, and the on-board printer printed test results.

　　The special tester for syringe sliding performance is composed of intelligent controller,

force measuring mechanism, distance measuring mechanism, printer and so on. Among them,

the intelligent controller is composed of CPU, motherboard, LCD screen, keyboard, power

supply and other parts. The screen is displayed in all Chinese Windows, and the keyboard is

used to control the cursor for options, operations and Settings.

Technical parameters

　　1. Environment

　　（1） Operating temperature :5——40℃

　　（2） Relative humidity :（45——80）%

　　（3） Power supply voltage :220V±22V

　　（4） Power grid frequency :50HZ+1HZ

　　2. Display mode

　　（1） 320x240 single color LCD display, all Chinese window display.

　　（2） Use the keyboard to control the menu on the LCD screen and the analog keyboard

on the LCD screen

　　3. Power consumption :200W

　　4. Instrument loading range :0——40N, accuracy :±0.1

　　5. Experimental speed :100mm/min±5mm/min

Partial list

　　1. One host

　　2. Printer paper 1 roll

　　3. A set of fixtures

　　4. Set weights

　　5. One year warranty

　　6. Operation instructions

　　7. Instrument lifetime free upgrade service in accordance with national standards
