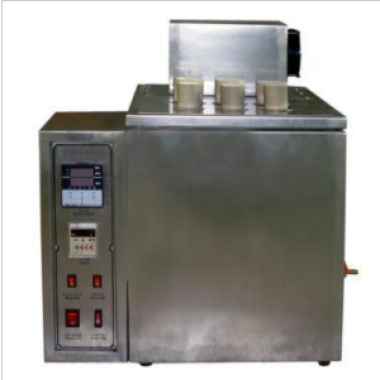

Automotive Wires Liquid Resistance Tester

Test Standards:

Requirements for liquid resistance tests of automotive wires in ISO 6722. SAE J1128. QC/T 730. and JASOD611

Main Parameters:

Test Oils:

1. Heat - retaining and heating oils (to be provided by the user): It is recommended to use oils with high boiling points and low volatility, such as transformer oil. If the test temperature is low, water can be used.

2. Test media (to be provided by the user): Gasoline, diesel, engine oil, alcohol, power steering fluid, automatic transmission fluid, engine coolant, battery acid, etc.

Temperature: Ambient temperature ~ 250℃

Test set: Circular quartz glass oil cup: diameter 100mm X 350mm

Inner container volume: 400 X 450 X 450mm

Stirring: Motor - driven stirring

Volume (approximate): Dimensions: 800 X 560 X 850 (mm)

Material: Inner and outer stainless steel

Temperature sensor: Pt100

Weight (approximate): 100Kg

Power supply: 1 - phase AC380V 50Hz 7.5A Total power: 4KW
