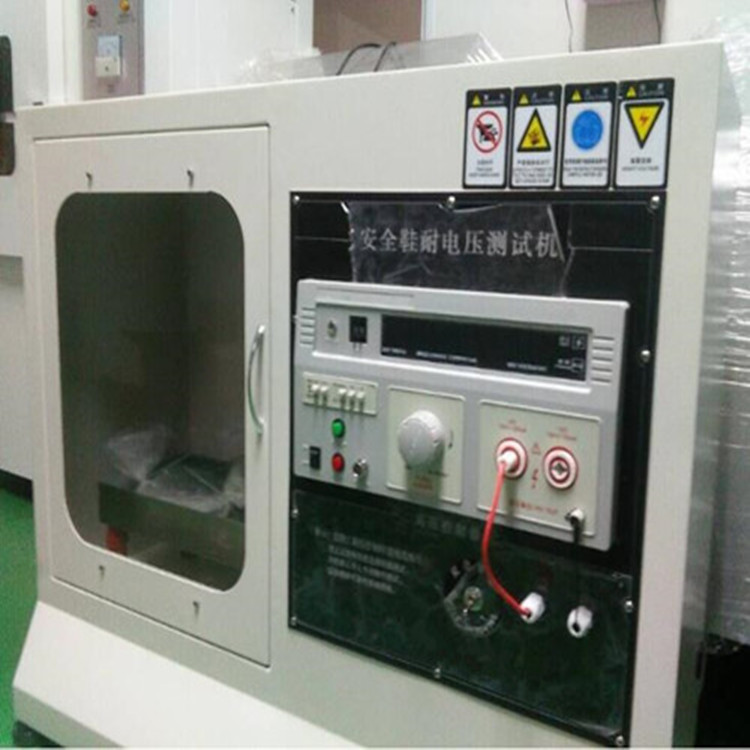

Safety Footwear Electrical Hazard Tester

The Safety Footwear Electrical Hazard Tester is designed to evaluate the dielectric strength and electrical insulation performance of safety footwear under specified test conditions. By applying controlled high voltage and monitoring withstand time and leakage behavior, the tester determines whether safety shoes comply with relevant electrical hazard protection requirements. The system is suitable for laboratory verification, type testing, and routine quality control of electrically insulated safety footwear.

Application

(1)Electrical hazard safety shoes for industrial workers used in power generation, electrical maintenance, and live-line operations

(2)Insulated safety footwear for construction sites involving temporary power distribution and electrical equipment installation

(3)Protective shoes for mining operations where electrical insulation is required in humid or conductive environments

(4)Safety boots for petrochemical plants and refineries with combined electrical and explosion-risk conditions

(5)Certified occupational safety footwear submitted for type approval, conformity assessment, and third-party laboratory testing

(6)Quality inspection of finished safety shoes during production and incoming material verification of insulated soles

Standards

(1)GB 12011 — Footwear for Protection Against Electrical Hazards

(2)GB/T 20991 — Personal Protective Equipment – Safety Footwear

(3)ISO 8782-1 — Safety Footwear – Electrical Properties – Test Methods

(4)EN ISO 20344 — Personal Protective Equipment – Test Methods for Footwear

(5)ASTM F2412 — Standard Test Methods for Foot Protection

(6)ASTM F2413 — Standard Specification for Performance Requirements for Protective Footwear

(7)ANSI Z41 — Personal Protection – Protective Footwear

(8)CSA Z195 — Protective Footwear

Features

(1)High-voltage output system for controlled dielectric strength testing of safety footwear

(2)PLC-based automatic control for voltage ramp-up, holding time, and test termination

(3)Selectable AC output voltage levels to meet different international standard requirements

(4)Stable high-voltage capacity to ensure repeatable and reliable test results

(5)7-inch color touch screen interface with Chinese and English language options

(6)Integrated safety protection design for high-voltage operation environments

Parameters

Accessories

(1)Standard safety footwear test electrodes

(2)High-voltage test cables

(3)Operating manual

Test Procedures

(1)Place the safety footwear in the specified test position according to the selected standard.

(2)Connect the electrodes to the designated contact points of the footwear.

(3)Set the required output voltage level and test duration via the touch screen.

(4)Start the test; the system automatically applies voltage and maintains it for the preset time.

(5)Observe and record the test status and results displayed on the screen.

(6)After completion, the system automatically discharges and safely ends the test.

Maintenance Information

(1)Regularly inspect high-voltage cables and electrodes for insulation integrity.

(2)Keep the control system and touch screen clean and free from dust and moisture.

(3)Perform periodic calibration of voltage output according to laboratory quality procedures.

(4)Ensure proper grounding of the equipment during operation.

(5)Store the tester in a dry environment within the specified operating temperature range.
