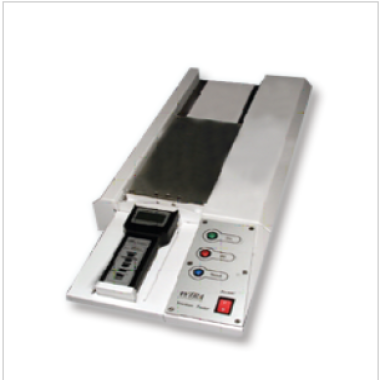

Friction Tester for Non - woven Fabrics

Instrument Description

This fabric friction tester can measure the static and kinetic friction coefficients of non - woven fabrics. It can be used to test the slippage of non - woven fabrics against themselves, as well as their slippage on the surfaces of other objects. The instrument consists of a flat plate, to which the sample is attached. During the test, the plate moves at a constant speed of 150mm/min and remains horizontal. The second sample is fixed on a sliding plate connected to the measuring device. When the driving device is activated, the pulling force increases to its maximum value. This pulling force, measured by the force - measuring device, is equivalent to the static friction coefficient. When the driving device continues to operate, the force - measuring device can measure the average force, which is equal to the kinetic friction coefficient.

Compliance Standards

INDA Test Method IST 140.1

Key Features

✔ Accurate results

✔ Can be used for testing nonwoven fabric against itself or some other substance

✔ Conforms to industry standards

✔ Simple handling

✔ Easy to read display

Specification

Dimensions: 150mm (H) x 335mm (W) x 800mm (D)

Power Consumption: 250W
