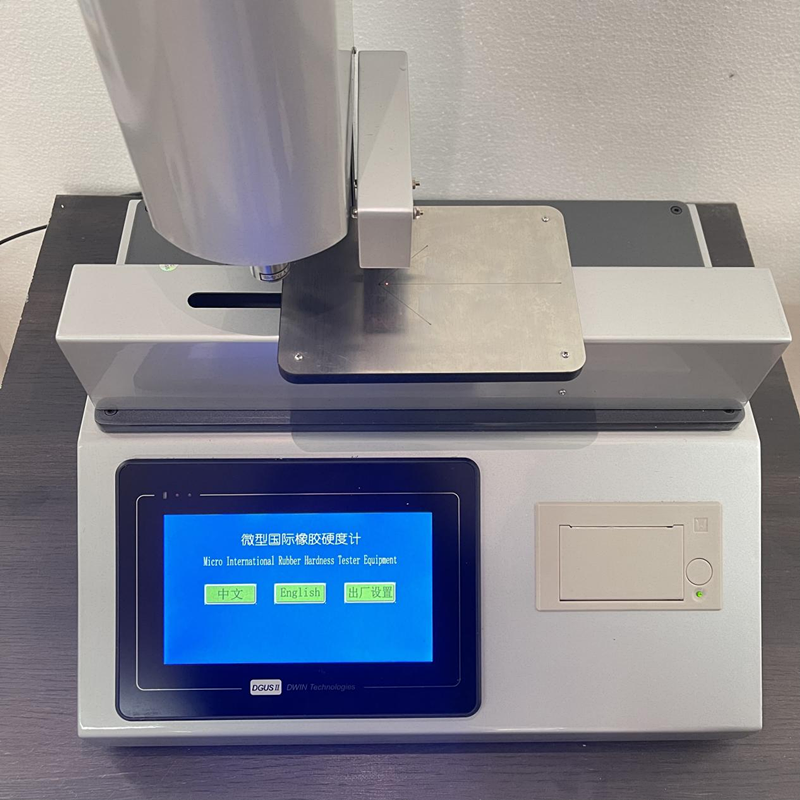

International rubber hardness tester

Technical parameters:

1, hardness effective measurement range: 30-95IRHD

2, initial load （contact force） : 8.3±0.5mN

3, the main load （pressure such as force） : 145±0.5mN

4, total force: 153.3±1.0mN

5, pressure on the foot force: 235±30mN

6, pressure ball diameter: 0.395±0.005mm

7, pressure foot diameter: 3.35±0.15mm

8, the thickness of the standard test piece is 2mm±0.5mm （the thickness of the rubber test piece can be measured from 1 to 6.5mm）

9, can be measured rubber O-ring diameter range: Φ1——Φ6.5mm

10, AC power supply: 220V±10%, 50HZ

11, Overall size: 250×280×290mm

12, Weight: 10 kg

Meet the standard:

GB/T6031-2017, ISO48 international standard, ASTM D1415 standard, etc
