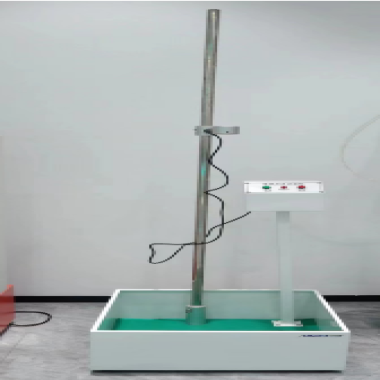

Falling ball impact testing machine

Product Introduction:

Falling ball impact tester is suitable for testing the fastness of plastic, ceramic, acrylic, glass fiber and other materials and coatings.

Standard:

JIS K6745 A5430

Performance characteristics:

The machine adopts DC electromagnetic control mode, the steel ball is placed under the electromagnetic suction cup, the steel ball is automatically sucked on, press the falling key, the suction cup instantly releases the steel ball, the steel ball will be free fall test, impact the surface of the specimen. Drop height can be adjusted up and down, and with a height scale, you can know the fall height of parts.

The key components of this machine are made in Japan, reliable performance, a variety of drop accessories, so that your test is accurate and productive.

Main parameters:

Ball weight: 112g, 198g, 225g, 357g, 533g, 1042g, 2280g

Drop height: 20——2000mm

Minimum indication of drop height scale: 1cm

Machine size: W400 x D450 x H2200mm

Machine weight: 50kg

Power supply: 220V,50Hz
