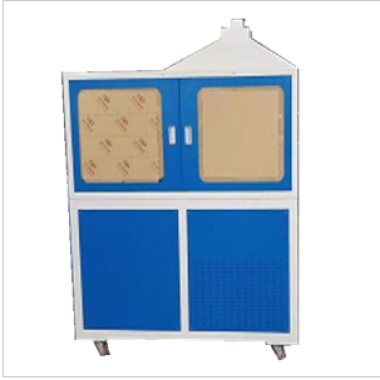

Conveyor Belt Drum Friction Testing Machine

Applicable Standards

When the conveyor belt drum friction testing machine conducts tests, it usually needs to comply with the following standards and specifications: GB/T 7986 - 1997 Test Method for Friction between Conveyor Belt and Drum: This standard specifies the specific methods and procedures for conveyor belt drum friction tests, including specimen preparation, test conditions, test procedures, and result evaluation. Testing in accordance with this standard can ensure the accuracy and comparability of test results. MT914 - 2008 Flame - retardant Solid Core Conveyor Belts for Coal Mines: This standard puts forward specific testing requirements for flame - retardant solid core conveyor belts, including multiple performance tests such as drum friction tests. The conveyor belt drum friction testing machine can be used for the tests specified in this standard to evaluate the flame - retardant and wear - resistant properties of coal mine conveyor belts. Other relevant standards may also be involved according to specific application fields and testing requirements. Before conducting tests, relevant standards and specifications should be consulted and understood to ensure the accuracy and reliability of test results.

Main Purposes

The conveyor belt drum friction testing machine has extensive application value in multiple fields. Its main purposes include:

Technical Parameters

1. Drum Size: Φ210 ± 0.5mm

2. Motor Power: 11kW

3. Drum Speed: 200 ± 5r/min

4. Micro Blower Power: 220V, 25W

5. Tension Weight: 343N/unit

6. Distance between Perforated Tube and Drum: 600mm

7. Air Flow: (Handheld Air Velocity Probe)

8. Temperature Display: Digital

9. Perforated Tube Diameter: Φ40 (Inner Diameter), Ventilation Holes: Φ6mm Inner Diameter, 21 Holes, 13mm Spacing

10. Temperature Sensors: 3 (2 Spare)
