Thermal Insulation Materials Adhesive Strength Tester

The bond strength tester, also known as a pull-off tester or pull-off adhesion tester, uses mechanical loading for continuous and uniform load application.  It features a compact and durable design, a liquid crystal display for showing bond strength values, and automatically and accurately records bond strength values with peak value retention.  Powered by dry cell batteries, this product is small, lightweight (approximately 3 kg total weight), and comes in a complete kit for easy portability and field use.  This device utilizes a composite sensor, ensuring a measurement accuracy of less than ±1%, which is superior to the 1.5% accuracy of hydraulic-type devices.

Application

This product is powered by dry batteries, is compact and lightweight, with a total weight of approximately 3 kg.  It comes in a complete kit for easy portability and use on-site. The thermal insulation material bonding strength tester uses a composite sensor, ensuring a measurement accuracy of less than ±1%, which is superior to the 1.5% accuracy of hydraulic equipment.

It can also be used for tensile and bonding strength testing of tiles, facing bricks, paints, coatings, rivets, mortar, anchor bolts, and thermal insulation materials.

Standards

JGJ144-2004 "External Wall insulation engineering Technical Regulations"

JG158-2004 "Rubber powder polystyrene particles external insulation System"

JG149-2003 "Expanded polystyrene board thin plaster exterior wall External insulation System"

JGJ110-2008 "Inspection standard for adhesive strength of decorative bricks in construction engineering"

JG1126-2000 Rules for Construction and Acceptance of Exterior Wall Decorative Tiles

Feature

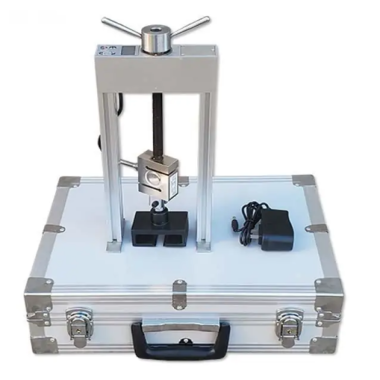

Mechatronic Design: The mechanical components, including the handle, sensors, lead screw, and reaction support, form a "gate-type" all-aluminum structure, facilitating operation and maintenance.

Lightweight and Easy to Operate: The testing instrument weighs 2.5 kg, is easy to operate, and suitable for on-site use.

Intelligent Digital Pressure Gauge: Directly displays KN values, featuring lightweight design, effortless handle operation, and simple operation.

Peak Hold Function: In peak hold mode, the maximum tensile force value is always displayed.

Multiple Measurement Modes: Suitable for testing the tensile strength of rivets and the bonding strength of insulation materials, with different test block specifications available.

Parameters

Test Procedures

Connect one end of the cable to the sensor socket on the adhesive strength tester panel.

Press and hold the power button for approximately 2 seconds to turn the instrument on/off.

On the main interface, find "Force Measurement" and press the confirmation button to enter the force measurement mode.

First, press the peak value button to enter the peak value measurement state, then press the zeroing button.

Turn the handle manually; the piston will rise. Before tension is applied, the LCD panel will display the friction force of the entire system.

Before formal measurement, press and hold the zeroing button until the force reading on the LCD panel shows "0.000", indicating that the digital display has automatically completed zeroing.

Then, turn the handle evenly to continuously increase the tensile force on the tested sample; the corresponding force value will be displayed on the LCD panel.

The peak value will be automatically held until the tensile force meets the requirements or the sample breaks.

After the test is completed, turn the handle in the reverse direction to lower the piston.
