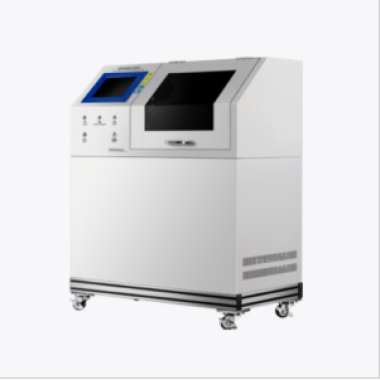

Liquid autoignition point tester, ASTM E659-78

Product Introduction

This product complies with GB/T 21860 - 2008 *Test Method for Auto - ignition Temperature of Liquid Chemicals* and ASTM E659 - 78(2005) *Test Method for Auto - ignition Temperature of Liquid Chemicals* (English version).

Product Features

1. It adopts an embedded processor and the Windows CE operating system. 2. Equipped with an 8 - inch liquid - crystal touch screen, it can display the test status in real - time. 3. It integrates high - temperature heat - insulation technology, temperature control, and precise detection technology. 4. It uses an electrically heated furnace, enabling fast heating. 5. The furnace chamber is made of heat - insulating vacuum ceramic fiber, providing excellent heat - insulation performance. 6. It uses a thermocouple sensor, which can quickly and accurately respond to temperature changes. 7. It is equipped with an automatic intelligent sample - injection module and a maintenance - free automatic cleaning function. 8. The test process is fully automated, requiring no manual intervention. There are animated image demonstrations of the experiment process, and reports can be generated automatically. 9. It is equipped with a temperature and humidity module, which can monitor the temperature, humidity, and atmospheric pressure of the test environment.

Technical Specifications

- Working environment: (5 ~ 40)°C, <85%RH - Test object: Liquids - Temperature control range: Room temperature ~ 650°C - Temperature control accuracy: ±1°C below 350°C; ±2°C above 350°C - Temperature measurement range: Room temperature ~ 800°C - Temperature measurement resolution: 0.1°C - Temperature measurement accuracy: ±2.5°C below 300°C; ±(0.75% of the reading) above 300°C - Ambient atmospheric pressure measurement range: (60 ~ 110)kPa - Ambient atmospheric pressure measurement accuracy: ±0.5kPa
