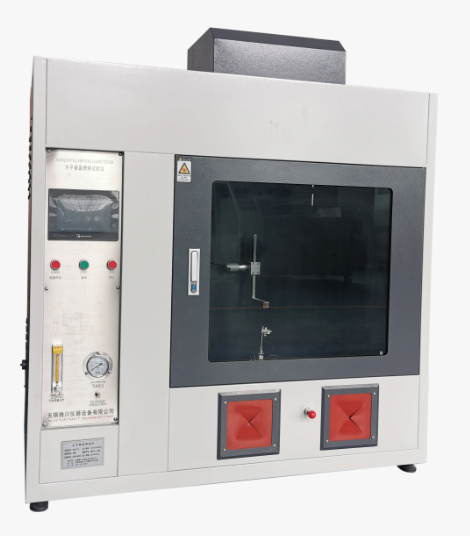

Single wire and cable horizontal burner

Product Introduction:

HT-DXSP touch screen control single wire and cable horizontal burner is suitable for determining the flame resistance of single plastic wire, control, crosslinking, elevator, Marine, mining cables, etc., in line with the standard JAS0-D618, is a test method used more and more for the combustion performance of single wire and cable in recent years.

Technical parameters:

1. Touch screen control

2. Studio size :W310xH610xD360mm, outer box size: W638xH670xD365mm;

3. Gas :95% propane gas （generally can be replaced by liquefied petroleum gas）（user's own）;

4. Flame burning time and flame extinguishing time 0-999.9s±0.1s, can be continuously set, automatic record, manual pause

5. Supply voltage :220V/50Hz
