Specifically, the main applications of the static four - point bending tester for intramedullary nai
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
YY/T 0591 (China): Standard for static four-point bending tests of lockable intramedullary nails.
ASTM F1264 (International): Specifications for evaluating the bending strength and stiffness of surgical fixation devices.
Dual-Standard Certification: Seamlessly meets both Chinese and international regulatory demands, enabling global market access.
Ultra-Precision Testing: ±0.5% force accuracy and 0.001mm displacement resolution ensure reliable data for R&D and quality control.
User-Centric Design: Intuitive touchscreen interface with multilingual support (English/Chinese/Spanish) and automated test protocols.
Durability: High-grade alloy frame with anti-corrosion coating for long-term stability in laboratory environments.
Safety First: Overload protection, emergency stop, and automatic sample alignment prevent equipment damage and user injury.

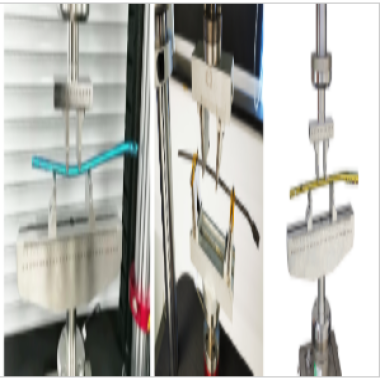

Four-Point Bending Configuration: Mimics physiological loading conditions to assess nail fatigue resistance and structural integrity.
High-Stiffness Load Frame: Withstands up to 10kN force for testing large-diameter implants.
Dynamic Data Acquisition: Real-time force-displacement curves and stress-strain analysis via integrated software.
Modular Fixture System: Quick-change clamps accommodate varying nail lengths (100–500mm) and diameters (6–14mm).
Customizable Testing Modes: Pre-programmed ASTM/YY protocols plus user-definable parameters for specialized trials.
Compliance Reporting: Automatically generates ISO 17025-ready test certificates with traceable calibration records.
| Parameter | Specification |
|---|---|
| Max. Test Force | 10 kN (1.000 kgf) |
| Force Accuracy | ±0.5% of reading (0–10kN) |
| Displacement Resolution | 0.001 mm |
| Crosshead Speed | 0.01–500 mm/min (adjustable) |
| Sample Diameter Range | 6–14 mm (expandable via optional kits) |
| Power Supply | 220V/110V ±10%, 50/60Hz |
| Dimensions (W×D×H) | 800 × 600 × 1.500 mm |
| Weight | 280 kg |
| Operating Environment | 15–35°C, ≤80% RH (non-condensing) |
Precision Test Fixtures: Upper/lower bending anvils with laser-marked alignment guides.
High-Accuracy Load Cell: 10 kN capacity, NIST-traceable calibration.
TestControl Software: License for 1 user (Windows 10/11 compatible) with cloud data backup.
Operator Manual: Multilingual PDF with IEC 61010 safety guidelines.
Tool Kit: Hex wrenches, alignment pins, and spare fuses.
Calibration Certificate: ISO 17025-accredited lab report.
