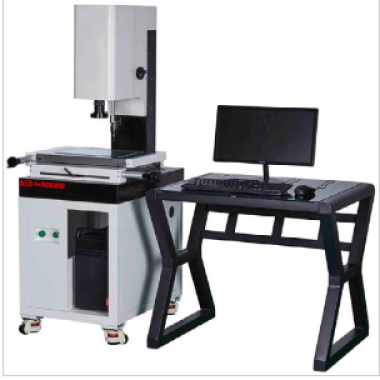

Manual Vision Measuring Machine

Product Introduction:

The manual imager can efficiently detect the outline and surface shape of a variety of complex workpieces, such as: templates, stamping parts, cams, threads, gears, forming milling cutter and other tools, tools and parts, as well as terminals, watches, diamonds, etc.

It is widely used in machinery, mold, instrument, electronics, light industry and other industries, and is an indispensable measurement and verification equipment for measuring rooms and production workshops.

Standards：

GB/T 6830-2013
JJF 1093-2015
ISO 10360-7:2011

Main parameters:

Measurement accuracy :≤(3+L/200)um

Operation mode :X, Y, Z three axis manual operation

Grating resolution :1um

Magnification: Optical magnification 0.7X-4.5X, image magnification 20-180X(customizable)

Imaging System: Hikvision Dry Megabit high-speed fiber optic digital camera (no video image card required)

Measuring stroke :300*200*180mm, 400*300*180mm, 500*400*180mm, 600*500*180mm, can be customized
