Coatings Shear Fatigue Tester

The Coatings Shear Fatigue Tester is a specialized laboratory instrument designed to evaluate the durability and adhesion performance of surface coatings under repeated shear stress. It simulates real-world mechanical loading conditions to measure a coating’s resistance to cracking, delamination, and fatigue over time. This tester is widely used in industries such as automotive, aerospace, electronics, and protective coatings to ensure long-term performance, optimize material formulations, and support quality control in production.

Standard

(1)YY/T 0988.13-2017 (China): Specifies shear fatigue testing protocols for coatings on metallic substrates, including load ratios, frequency, and failure criteria.

(2)ASTM F1160-17 (International): Defines methodologies for evaluating the mechanical performance of implant-coating interfaces under cyclic loading.

Product Advantages

(1)Ultra-Precision Loading: Electromagnetic servo motor ensures backlash-free operation with 0.001 N shear force resolution.

(2)Biorelevant Simulation: Integrated 37°C water bath system replicates physiological conditions for in vitro corrosion testing.

(3)Universal Fixturing: Self-centering clamps accommodate substrates (10–50 mm diameter) and coatings (1–200 µm thickness).

(4)High-Cycle Endurance: 10 million cycle capacity with ±0.05% load accuracy.

(5)Compact Design: Benchtop footprint (500 × 450 × 700 mm) suits laboratory environments.

(6)Regulatory Compliance: Pre-loaded YY/T 0988.13 protocols with automated data reporting for FDA/CE submissions.

Product Features

(1)Electromagnetic Servo Actuator: 10 kN shear load capacity with programmable R=0.1–10 ratios.

(2)Dual Sensor System: 0.01 N resolution shear force transducer + 0.001 mm LVDT displacement sensor.

(3)Dynamic Load Control: 0.1–30 Hz frequency range with sine/square/random waveforms.

(4)Thermal-Mechanical Bath: 37±0.5°C recirculating water system with anti-evaporation design.

(5)High-Resolution Imaging: Built-in 5MP camera system for coating delamination analysis.

(6)Safety Suite: Emergency stop, overload clutches, and water leak detection system.

Technical Parameters

Accessoriess

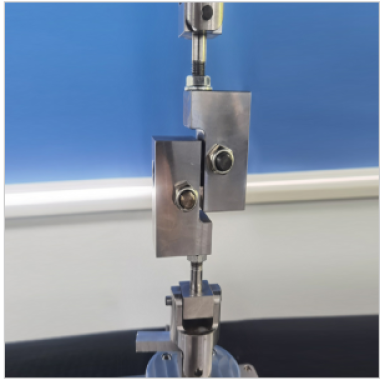

(1)Shear Fixture Kit:

Self-centering clamps (10–50 mm substrate compatibility)

Coating thickness gauges (1–200 µm measurement range)

(2)Thermal-Mechanical Bath:

15L capacity with recirculating pump

Corrosion-resistant titanium interior

(3)CoatingTest Pro Software:

Automated S-N curve generation and adhesion failure analysis

21 CFR Part 11-compliant audit trail with blockchain timestamping

Remote monitoring via iOS/Android app

(4)Operator Kit:

Calibrated torque wrench set (0.1–10 Nm)

Substrate alignment jigs (ASTM F1160 compliant)

(5)Calibration Bundle:

NIST-traceable force calibration weights

LVDT verification tool

(6)Safety Kit:

Water leak detection system

Acoustic enclosure with 25 dB noise reduction

Test Procedures

(1)Prepare coated samples according to standard dimensions and curing conditions.

(2)Mount the sample securely in the tester’s fixture to ensure proper shear load application.

(3)Set test parameters including shear amplitude, frequency, and cycle number.

(4)Start the test and monitor for cracks, delamination, or failure; record cycles to failure and other relevant data.

Maintenance Information

(1)Regularly clean the fixture and load application surfaces to prevent residue buildup.

(2)Lubricate moving parts and guide rails according to the manufacturer’s instructions.

(3)Inspect sensors, load cells, and electrical connections periodically for accuracy and safety.

(4)Calibrate the tester at recommended intervals to ensure precise measurement results.

FAQ

1.What is the purpose of the Coatings Shear Fatigue Tester?

It evaluates the durability and resistance of coatings under repeated shear stress to determine fatigue life and adhesion performance.

2.What types of coatings can be tested?

Paints, polymer coatings, protective films, and other surface treatments applied on metals, plastics, or composites.

3.How are the test results interpreted?

The tester records cycles to failure, crack initiation, or delamination, providing quantitative data on coating fatigue resistance.

4.Can the test parameters be adjusted?

Yes, users can set shear amplitude, frequency, and number of cycles to simulate different service conditions.

5.How often should the tester be calibrated?

Regular calibration is recommended, typically every 6–12 months, to ensure measurement accuracy and repeatability.
