The SpectroColor Pro S Series Gloss Meter adheres to stringent automotive interior quality control standards, includingISO 2813. ASTM D523.and DIN 67530
Unmatched Precision
Enhanced 60° geometry for low-gloss regions (0–10 GU) with ±0.1 GU repeatability, validated by TÜV Rheinland-certified calibration.
10nm spectral resolution captures nuanced color variations, whether matte or high-gloss finishes.
Robust Performance
True Circumferential Illumination: Eliminates positional measurement errors, ensuring consistent results across all orientations.
Extended Calibration Stability: Recalibration required only once every 3 months, reducing downtime.
Wide Temperature Tolerance: Operates flawlessly in 10–40°C environments, maintaining data integrity in extreme conditions.
Durability & Cost Efficiency
10-Year LED Light Source Warranty: Eliminates bulb replacement costs.
Long-Life AA Batteries: Powers 8.000+ measurements per set, ideal for high-volume QC lines.
User-Centric Design
Compact (500g) and ergonomic with dedicated buttons for standards/samples.
Easy-Link Software: Generates professional reports with colorimetry (Lab*, ΔE) and gloss data.
Dual Measurement Modes:
45/0 or d/8° spin geometry for versatile surface analysis (textiles, coatings, plastics).
Ring illumination system ensures high repeatability on textured fabrics.
Comprehensive Control:
Simultaneous color (10nm resolution) and gloss (0–2000 GU range) measurement.
Temperature-independent data acquisition eliminates environmental drift.
Smart Calibration:
Auto-recognition of black/white calibration boards and green reference standards.
Sample positioner accessory ensures consistent measurement alignment.

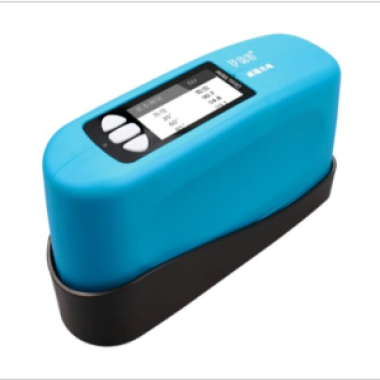

SpectroColor Pro S Series Gloss Meter
Calibration Kit: Black/white calibration boards (certified), green reference standard
High-Gloss Standard Plate
Sample Positioner
Easy-Link Software (PC/Mac compatible)
USB Data Cable & 4× AA Batteries
Carrying Case with Shoulder Strap
Multilingual User Manual & Color Theory Guide
| Model | SpectroColor Pro 45/0 S (CC-6802) | SpectroColor Pro d/8 S (CD-6836) |
|---|---|---|
| Geometry | 45/0 | d/8° Spin |
| Gloss Angle | 60° | 60° |
| Color Aperture | 11mm | 11mm |
| Gloss Aperture | 5×10mm | 5×10mm |
| Resolution | 0.1 GU / 0.01 ΔE | 0.1 GU / 0.01 ΔE |
| Operating Temp. | 10–40°C | 10–40°C |
| Battery Life | 8.000 measurements | 8.000 measurements |
| Dimensions | 180×85×60mm | 180×85×60mm |
| Weight | 500g | 500g |
