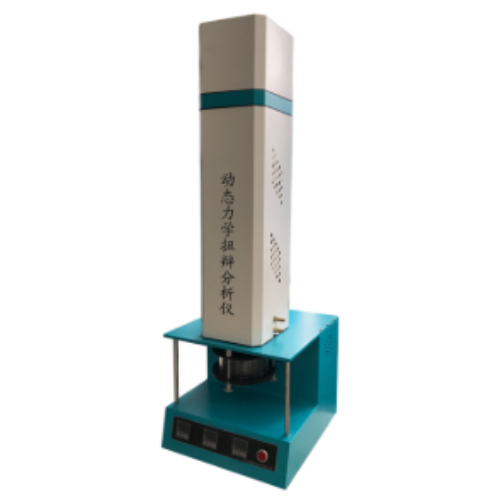

Dynamic mechanical torsional braid analyzer

The Dynamic Mechanical Torsional Braid Analyzer (TBA) is a computer-controlled thermomechanical analysis instrument used to characterize the viscoelastic properties of polymer materials through free-decay torsional vibration. Based on torsional braid analysis principles, the system measures dynamic modulus and mechanical loss as functions of temperature, stress, strain, and frequency. The instrument adopts digital measurement, automated control, and high-capacity data processing technology to replace traditional manual torsional braid testing, enabling accurate, sensitive, and repeatable evaluation of material viscoelastic behavior using minimal sample quantities.

Application

(1) Determination of dynamic modulus and mechanical loss of polymer materials under torsional vibration.

(2) Evaluation of viscoelastic behavior of polymers as a function of temperature.

(3) Characterization of glass transition behavior and relaxation processes in polymer systems.

(4) Comparative analysis of different polymer formulations and additives.

(5) Research on thermomechanical properties of elastomers, resins, fibers, and composite materials.

(6) Quality control testing for polymer raw materials and finished products.

(7) Material research and development in academic, industrial, and inspection laboratories.

Standards

(1) HST-BW-500 — Torsional Braid Analysis Method

(2) SN/T 3238.2-2012 — Test Method for Dynamic Mechanical Properties of Polymer Materials by Torsional Braid Analysis

Features

(1) Free-decay torsional vibration testing principle with high sensitivity.

(2) Minimal sample requirement compared with other dynamic mechanical analysis methods.

(3) Wide temperature testing range suitable for low- and high-temperature material evaluation.

(4) Computer-controlled digital measurement and automated data acquisition.

(5) Real-time calculation and display of viscoelastic parameters.

(6) Integrated data storage and processing system reducing manual operation.

(7) Stable mechanical structure ensuring repeatable test results.

Parameters

Accessories

(1) Torsional braid fixture set.

(2) Temperature control and sensing components.

(3) Data acquisition and control software.

(4) Standard calibration and mounting tools.

Test Procedures

(1) Prepare the torsional braid specimen and install it in the test fixture.

(2) Set the test mode and parameters via the control software.

(3) Configure the temperature range and heating rate.

(4) Initiate the torsional vibration test and allow free-decay oscillation.

(5) Record dynamic modulus and damping parameters automatically.

(6) Complete the test and save or export the measured data and curves.

Maintenance Information

(1) Clean the test fixture and sample holders after each test.

(2) Periodically verify temperature calibration and control accuracy.

(3) Inspect mechanical components for wear or looseness.

(4) Maintain stable electrical power supply conditions.

(5) Back up test data regularly and keep software updated.

(6) Store the instrument in a clean, dry laboratory environment.

FAQ

1. What is the primary purpose of the Dynamic Mechanical Torsional Braid Analyzer?

Answer: This instrument is designed to measure the torsional properties of fibers, yarns, and braided materials. It can evaluate:

Torsional stiffness

Elastic recovery

Damping behavior

Dynamic mechanical response under varying frequencies and temperatures

It is widely used in textile research, composite materials development, and quality control of high-performance yarns.

2. What types of samples can be tested?

Answer: The analyzer accommodates fibers, yarns, and braided structures. Typical requirements include:

Sample length: tens to hundreds of millimeters

Sample diameter/width: approximately 0.1–5 mm (depending on the fixture)

Sample form: single yarn, multi-ply yarn, or braided configuration

Fixtures and tension settings can be adjusted to match the sample’s physical properties.

3. What dynamic testing capabilities does the instrument offer?

Answer: The instrument can perform:

Torsional angle scans: Measures mechanical response at different twist angles

Frequency scans: Evaluates modulus and damping at varying vibration frequencies

Temperature scans (on certain models): Assesses the influence of temperature on torsional behavior

These tests provide data on torsional modulus, storage modulus, and loss modulus.

4. How can I ensure accurate test results?

Answer: Accuracy can be maintained by:

Preparing samples carefully to avoid defects

Using appropriate fixtures and tension settings

Regularly calibrating torque sensors and angle measurement systems

Controlling environmental conditions, such as temperature and humidity

Repeated testing and statistical analysis improve data reliability.

5. In which industries or applications is this analyzer commonly used?

Answer: Common applications include:

Textile industry: Evaluating yarns and braided fabric torsion performance

Composite materials: Studying fiber bundle behavior in composites

High-performance cables and ropes: Aerospace, marine, and industrial uses

Scientific research: Investigating torsional and dynamic mechanical properties of materials
