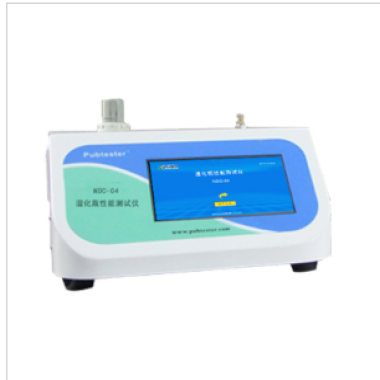

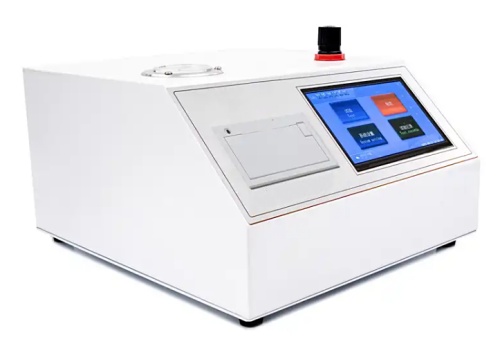

Humidifying Bottle Performance Tester

The Humidifying Bottle Performance Tester is used to test items such as leakage, pressure resistance, humidification output, and overflow of humidifying bottles.

Applications

The humidifier bottle performance tester is mainly used to detect various properties of humidifier bottles, including but not limited to leakage, pressure - resistance, humidification output, and overflow. This instrument can ensure the safety and effectiveness of humidifier bottles during use, and it is an important tool for the quality inspection of medical oxygen humidifiers.

Standards

YY/T 1610 - 2018：Anaesthetic and respiratory equipment - Oxygen humidifiers for medical use

Features

• Supports leakage, pressure resistance, humidification output, and overflow testing functions for humidification bottles.

• 7-inch color touchscreen control and intuitive interface significantly enhance the user experience.

• The device is equipped with a miniature printer for real-time printing of test results.

• Equipped with a high-precision pressure sensor, allowing for stable control of output pressure via a rotary pressure knob.

• Equipped with a high-precision flow meter for accurate measurement of flow rate through the tubing.

• Features a 20° tilt design device to accommodate observation at various angles for different specifications.

• Utilizes a universally designed conical test interface to meet the testing requirements of most products on the market.

• The device has a powerful data storage function, capable of storing up to 50.000 data entries.

• Miniature printer and universal USB data interface facilitate data output and transfer.

• Intelligent features such as overload protection and power-off memory effectively ensure user safety.

• Optional GMP "Computerized Systems" compliant testing software is available, featuring user management, permission management, and data audit trail functions.

Technical Parameters

Accessoriess

Standard configuration: electronic control unit, testing unit, printer

Test Procedures

1. Pre-test Preparation

Check that the instrument's power supply (220V, 5A, 50Hz) is functioning correctly, and confirm that the external gas source (0-2MPa) is connected and adjustable;

Calibrate the flow sensor (ensuring an accuracy of ±1%), clean the instrument interfaces and tubing to ensure the test pathway is unobstructed.

2. Humidifier Bottle Sample Installation

Remove the humidifier bottle to be tested, check its appearance for damage, and connect the humidifier bottle to the instrument's test tubing according to the interface specifications;

Seal the connection between the humidifier bottle and the instrument, ensuring there is no risk of leakage at the interface (low-pressure gas can be pre-applied to initially verify the seal).

3. Test Parameter Settings

Select the test item (e.g., leak test, pressure test, humidification output test) via the instrument's touchscreen;

According to the YY/T 1610-2018 standard, set the corresponding test parameters: such as pressure test pressure, pressure holding time, test flow rate, etc., and save the parameters after confirmation.

4. Starting the Test

After confirming that the humidifier bottle connection and parameter settings are correct, click the "Start" button, and the instrument will automatically execute the corresponding test procedure (e.g., the leak test will monitor pressure changes, and the pressure test will stably maintain the set pressure);

During the test, the instrument will display pressure, flow rate, and other data in real time.

5. Test Process Monitoring

Observe whether the data on the instrument interface is stable. For leak tests, pay close attention to whether the pressure drops abnormally; for pressure tests, confirm that the humidifier bottle is not deformed or ruptured;

If abnormal data or equipment alarms occur, pause the test immediately and troubleshoot the problem (e.g., interface leakage, unstable gas source).

6. Test Completion and Cleanup

After the test is completed, the instrument will automatically shut down, and the test results will be recorded (e.g., whether the leakage is qualified, whether the pressure resistance value meets the standard);

Disconnect the gas source, loosen the humidifier bottle interface, remove the sample, clean the instrument tubing and interfaces, turn off the equipment power, and prepare the test report.

FAQs

1. What is the Blood Humidifying Bottle Performance Tester used for?

The Blood Humidifying Bottle Performance Tester is used to evaluate key performance characteristics of humidifying bottles, including leakage, pressure resistance, humidification output, and overflow performance. By simulating actual operating conditions during oxygen humidification, the tester verifies whether the humidifying bottle can operate safely and effectively without leakage, structural failure, or abnormal overflow. This makes the instrument an essential tool for quality inspection and performance verification of medical oxygen humidifier bottles.

2. Which specific test items can be performed with this tester?

The tester supports multiple test functions for humidifying bottles, including leak testing, pressure resistance testing, humidification output testing, and overflow testing. During testing, pressure and flow conditions can be precisely controlled, allowing the device to monitor pressure stability, flow accuracy, and performance behavior under different operating states. These test items together provide a comprehensive evaluation of humidifier bottle safety, sealing integrity, and functional effectiveness in clinical use.

3. In which applications is the humidifying bottle performance tester mainly used?

The humidifying bottle performance tester is mainly used in the quality inspection of medical oxygen humidifiers. It is applied to evaluate the safety and performance of humidifier bottles before they are put into use. By detecting leakage, pressure resistance, humidification output, and overflow behavior, the tester helps ensure that humidifier bottles meet usage requirements and function reliably during oxygen therapy, thereby supporting safe clinical application and effective patient care.

4. What standards does the Blood Humidifying Bottle Performance Tester comply with?

The tester is designed to support performance testing in accordance with YY/T 1610-2018. which specifies requirements for oxygen humidifiers for medical use under anaesthetic and respiratory equipment standards. Test parameters such as pressure, flow rate, and holding time can be set according to the standard, ensuring that humidifying bottle performance evaluation is carried out under regulated and consistent conditions.

5. What technical features improve testing accuracy and operational safety?

The instrument is equipped with a high-precision pressure sensor and a high-accuracy flow meter, ensuring flow accuracy within ±1%. Output pressure is controlled stably via a rotary pressure knob. The tester also features overload protection and power-off memory functions to enhance user safety and data reliability. A 7-inch color touchscreen provides an intuitive interface, while real-time display of pressure and flow data allows continuous monitoring throughout the test process.

6. How is the testing process generally carried out?

Testing begins with checking the power supply and external air source, followed by calibration of the flow sensor and cleaning of test pathways. The humidifier bottle is then connected to the test tubing and sealed securely. After selecting the test item and setting parameters according to YY/T 1610-2018. the tester automatically performs the test while displaying real-time pressure and flow data. Once testing is completed, results are recorded, the sample is removed, and the system is cleaned and shut down in preparation for reporting.
