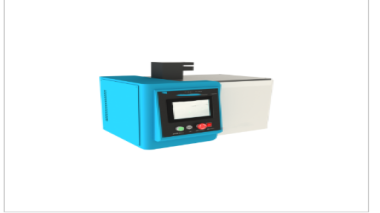

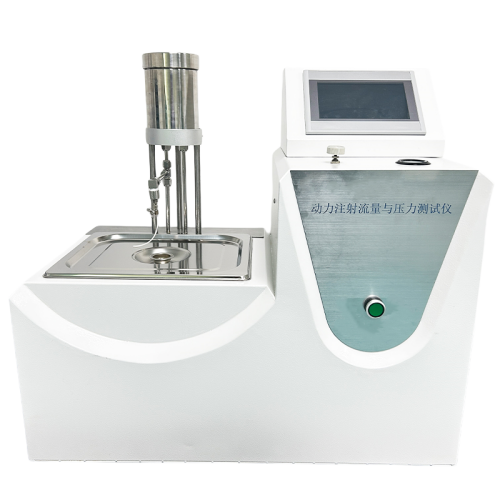

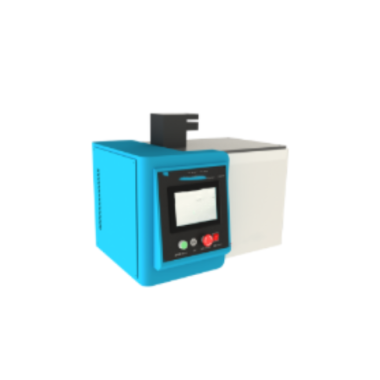

Catheter Power Injection Flow and Pressure Tester

Main Uses

The catheter flow and pressure tester for power injection is an important medical device, mainly used to detect key parameters such as flow and pressure of medical catheters (especially micro - catheters) during power injection. These parameters are crucial for evaluating the safety, reliability, and therapeutic effects of catheters. The tester can simulate clinical usage scenarios, conduct pressure resistance tests and flow measurements on catheters, ensuring that catheters will not rupture or leak under high - pressure injection, while maintaining the stability and accuracy of the flow.

Compliance Standards

YY 0285.1 - 2017 Disposable Sterile Intravascular Catheters, etc.

Technical Parameters

Test Pressure: Generally adjustable within 0 - 10MPa, with an error not exceeding ±2%. Some devices may have a smaller pressure range, such as 0 - 28MPa.

Test Flow: Generally 0 - 500ml, with an error not exceeding ±2%.

Water Bath Temperature: Usually 37°C, with an error not exceeding ±1°C. Data Storage: It can store multiple groups of test data, such as 200 groups or 500 groups, etc. Accuracy: High - precision sensors and data acquisition systems ensure the accuracy of test results.
