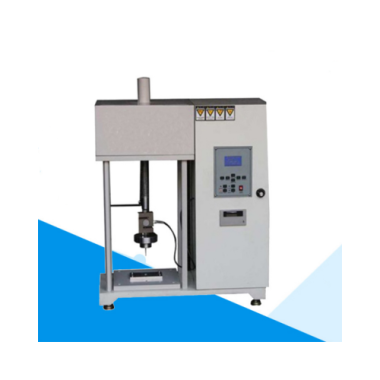

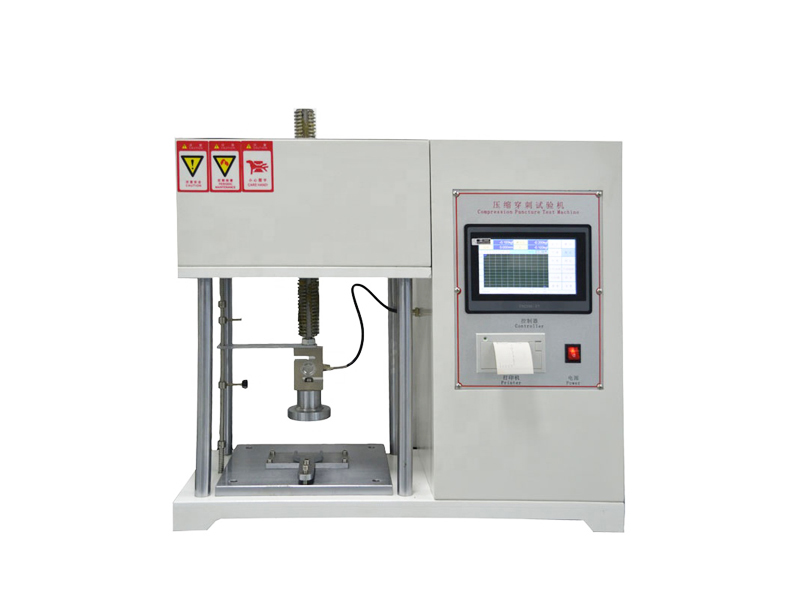

Safety Footwear Compression Puncture Tester

The Safety Footwear Compression Puncture Tester is designed to evaluate the compression resistance of safety footwear toe caps and the puncture resistance of midsole steel plates. The instrument simulates real working conditions to ensure that safety shoes provide sufficient protection against crushing and sharp object penetration, reducing the risk of injury in industrial environments. It is widely used for product development, quality control, and certification testing.

Application

This tester is suitable for:
(1) Safety Footwear Manufacturing: Verifies toe cap compression strength and midsole puncture resistance.
(2) Quality Control Laboratories: Ensures compliance with international safety standards.
(3) Third-Party Testing Institutions: Provides reliable data for certification and inspection.
(4) Industrial Safety Evaluation: Assesses protective performance of footwear used in construction, mining, and manufacturing industries.

Standards

(1) BS EN 344 – Safety footwear testing methods (ISO standards equivalent)
(2) ANSI Z41 – Personal protection protective footwear standard
(3) ISO 20344 – Personal protective equipment – Test methods for footwear
(4) GB – China national standards for safety footwear
(5) JIS – Japanese industrial standards for footwear testing

Parameters

Features

(1) Dual Function Testing: Combines toe cap compression and midsole puncture resistance testing in one system.
(2) Stepless Speed Regulation: Adjustable test speed to meet different standard requirements.
(3) Multi-Unit Display: Supports kg, N, and lb switching for international compatibility.
(4) High Precision Measurement: Equipped with high-resolution load cell for accurate force detection.
(5) Safety Protection System: Includes upper limit protection, peak value retention, and automatic shutdown.
(6) Integrated Micro Printer: Enables direct printing of test results for documentation and traceability.

Test Procedures

(1) Place the footwear sample or steel plate in the designated fixture.
(2) Select the required test mode (compression or puncture) and set parameters.
(3) Adjust the test speed according to the applicable standard.
(4) Start the test and monitor force application until the specified limit or failure occurs.
(5) Record and print the test results for analysis and compliance verification.

Maintenance Information

(1) Regularly calibrate the load cell to ensure measurement accuracy.
(2) Inspect mechanical components and transmission system for wear.
(3) Keep the testing area clean to prevent debris interference.
(4) Check the printer and control system periodically for proper operation.

Conclusion

The Safety Footwear Compression Puncture Tester provides precise and reliable evaluation of protective footwear performance, ensuring compliance with international safety standards and enhancing workplace safety.

FAQ

(1) What is this product?
A testing instrument used to evaluate compression and puncture resistance of safety footwear.

(2) What is this product used for?
To measure the strength of toe caps and the puncture resistance of midsoles to ensure protective performance.

(3) What is the working principle of this product?
The machine applies controlled compressive or puncture force to the sample and records the resistance and deformation behavior.

(4) Why is this product important?
It ensures that safety footwear meets regulatory requirements and protects workers from injury in hazardous environments.

(5) What industries is this product suitable for?
Safety footwear manufacturing, construction, mining, industrial production, and testing laboratories.
